Tridonic ADV Plug Type B YL

Product number: 28001772
Tridonic GmbH & Co KG

Tridonic ADV Plug Type B YL

Product number: 28001772

Immediately available

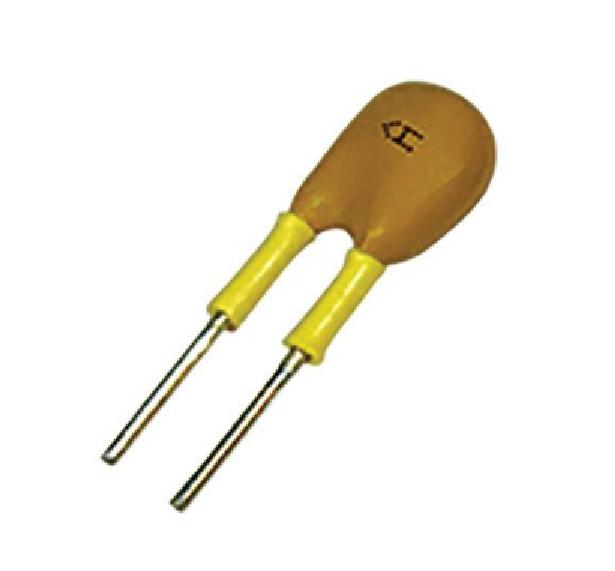

The prefabricated resistor ADVconnector type B YL for outpuct current selection with 3.16 kilo ohms iscompatible with all Tridonic LED drivers from the series LC flexC ADV. It isbase-isolated, has a resistor power of 0.25 watts and a current tolerance of +-2% in addition to the output current toler ... Read more

€1.29


Content: 1 Stück

Product information "Tridonic ADV Plug Type B YL"

The prefabricated resistor ADVconnector type B YL for outpuct current selection with 3.16 kilo ohms iscompatible with all Tridonic LED drivers from the series LC flexC ADV. It isbase-isolated, has a resistor power of 0.25 watts and a current tolerance of +-2% in addition to the output current tolerance. It is not possible to add orremove components during operation (Hot Plugging).

The prefabricated resistance ADVconnector type B YL ist not compatible with I-select (generation 1) andI-select 2 (generation 2) compatible devices.

Electrical data
terminal type: Push-in CAGE CLAMP®
Photometric data
color: yellow
interface: ADV Plug
Logistic data
item category: LED drivers

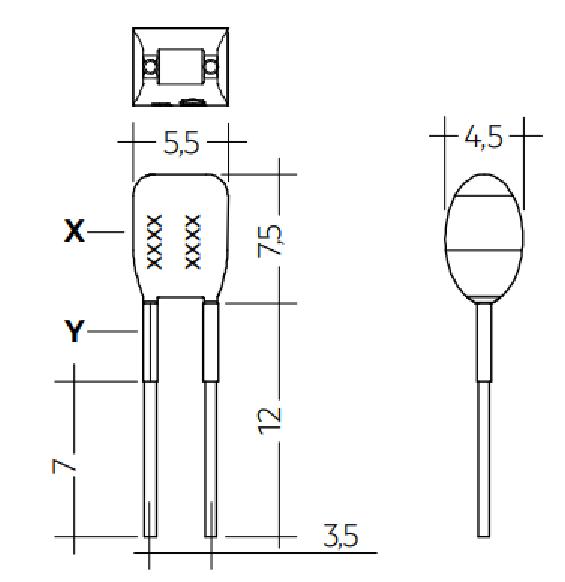

Dimensions & packaging
EAN 9006210621616
Length 20 mm
Width 6 mm
Height 5 mm
