Tridonic LED-Driver LC 40W 800-1050mA flexC SC ADV - 28002478

Product number: 28002478
Tridonic GmbH & Co KG

Tridonic LED-Driver LC 40W 800-1050mA flexC SC ADV - 28002478

Product number: 28002478

Immediately available (10 articles directly deliverable)

That's why you should buy this product now
  • Excellent reviews on Trustpilot
  • 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
  • Short delivery times for stock items
  • Very good price-performance ratio
  • Highest possible quality standards
  • Products from renowned manufacturers


Content: 1 Stück

Product information "Tridonic LED-Driver LC 40W 800-1050mA flexC SC ADV - 28002478"

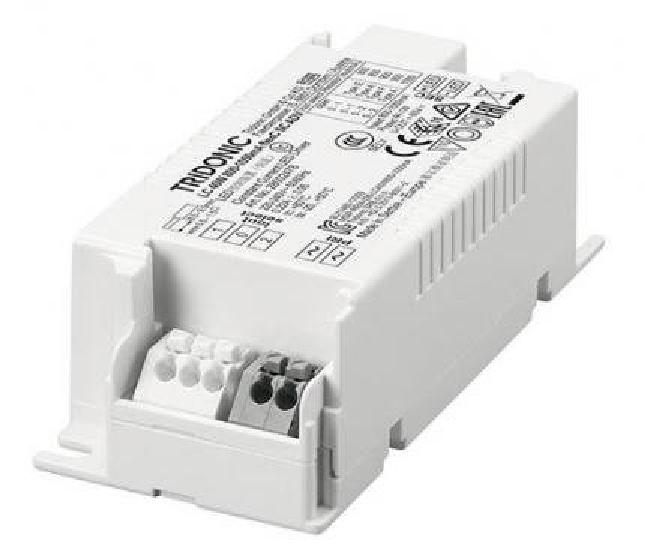

LED ECG for spotlights, downlights and panels

The LC 40W 800-1050mA flexC SC ADV constant-current LED driver from the ADVANCED series by Tridonic can be used for luminaire installation. It is suitable for luminaires of protection class I and II. Ideal application areas are spotlights and downlights in retail and hospitality applications or panel and area lighting in office and educational applications.

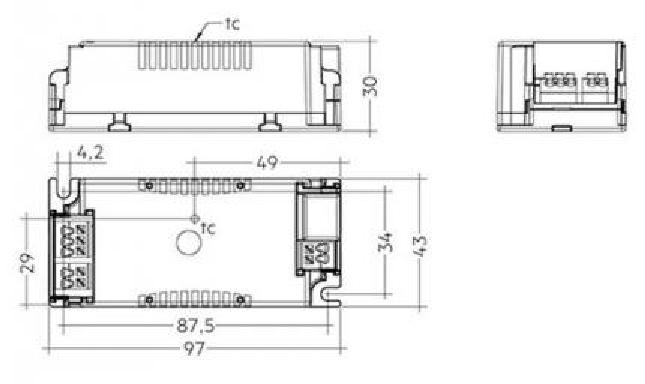

The small IP20 protected housing of the constant current LED driver is made of white polycarbonate and has the small dimensions 97 x 43 x 30 mm.

Output current adjustable from 800 to 1050 mA

With the ADV plug-in technology, the output current is adjustable in 5 steps between 800 mA and 1050 mA (800 mA are pre-installed). The maximum output power is 44.1 watts.

The Tridonic LED driver is equipped with a temperature protection according to EN 61347-2-13 C5e. It also has an overload protection, a short circuit protection, a no-load protection and a protection against burst voltage 1 kV, surge voltage 1 kV (L to N) and surge voltage 2 kV (between L/N to ground).

The nominal life is up to 100,000 hours. Tridonic offers a 5 year warranty on the driver.

Downloads & Documents

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
number of channels: 1
output voltage: 25-42 V
operating mode: constant current
rated voltage: 220-240 V
lifetime: 100000 h
system power: 32 W
max housing temperature (tc-max): 80 °C
protection type: IP20
mounting: Installation
environment temperature from: -20 °C
environment temperature to: 50 °C
Photometric data
color: white
Logistic data
item category: LED drivers
Dimensions & packaging
EAN 9006210674094
Length 97 mm
Width 43 mm
Height 30 mm
