Theben Installation PIR Motion Detector theRonda P360-330 DALI UP WH white

Product number: 2080045
Theben AG

Theben Installation PIR Motion Detector theRonda P360-330 DALI UP WH white

Product number: 2080045

Immediately available

DALI PIR presence detector with 3 button inputsThe DALI built-in passive infrared motion detector theRonda P360-110 DALI UP from Theben has a round detection range of 360 °, up to Ø 24 m. It has up to 3 DALI-addressable light channels and up to 3 button inputs, whereby the assignment of the buttons ... Read more

€180.13


Product information "Theben Installation PIR Motion Detector theRonda P360-330 DALI UP WH white"

DALI PIR presence detector with 3 button inputs

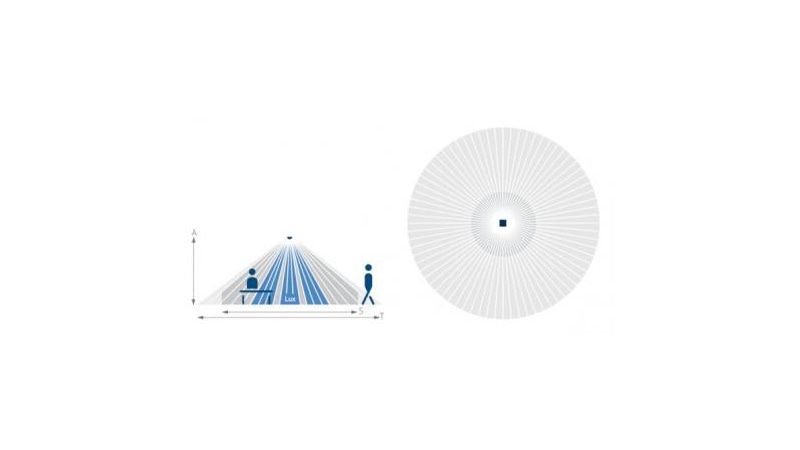

The DALI built-in passive infrared motion detector theRonda P360-110 DALI UP from Theben has a round detection range of 360 °, up to Ø 24 m. It has up to 3 DALI-addressable light channels and up to 3 button inputs, whereby the assignment of the buttons to the desired light channel happens flexibly via remote control.

The use of conventional buttons ensures maximum design freedom. Behavior after push-button operation is selectable (school / office)

The presence detector can be used in switching operation with dimmable lighting or as constant light control with standby functionality. In addition, it can be put into operation as a full or semi-automatic machine.

Controllable via remote control or push button

The brightness switching value or setpoint in Lux can be adjusted. Teach-in happens via a remote control or push-button. In addition, the control speed and the self-learning delay time of the light can be adjusted.

You benefit from an extremely simple setting of the energy-saving behavior (eco / eco plus). Test modes for light and presence are available. Parallel connection of several presence detectors (Master/Slave or Master/ Master) is possible. In addition, the DALI presence detector impresses with optimized handling by the installer during installation, wiring and commissioning.

Technical Data

Logistic Data

EAN (pcs): 7612748006317

EAN (packunit): 7612748006317

Electrical Data

Rated Voltage: 110-230V

Rated frequency: 50/60Hz

Technical lighting data

Interface: DALI

Sensortechnologie: passive infrared

Housing Color: white

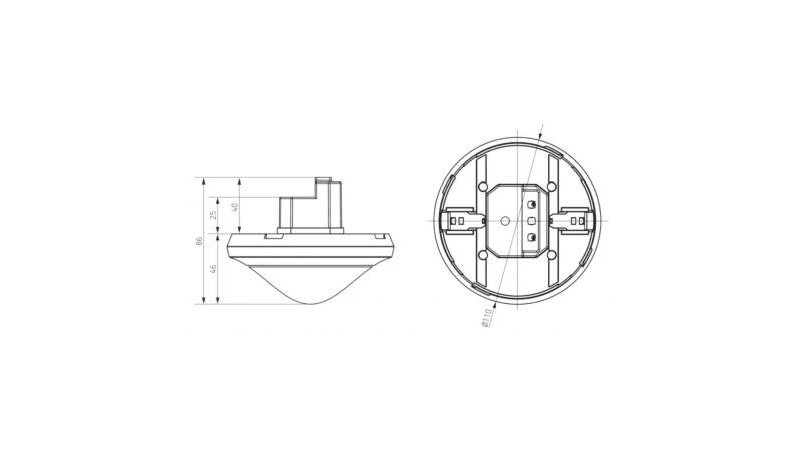

Dimensions

Height [mm]: 83mm

Outer diameter: 110mm

Mounting method: flush mounting

Housing

IP protection class: IP54

Ambient temperature (ta): -15...+50°C

Item number: 2080045
