OSRAM GmbH

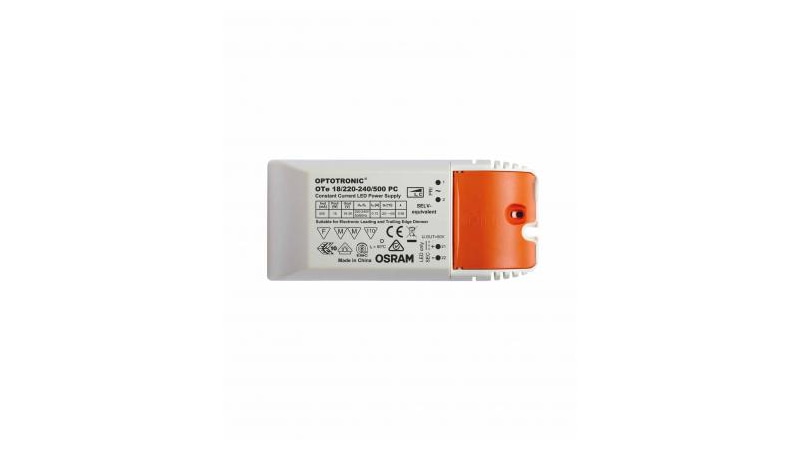

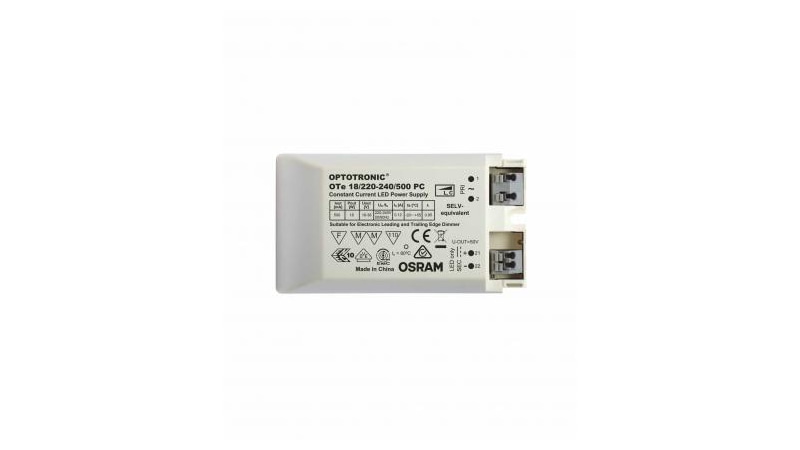

Osram LED-Driver OTe 18/220-240/500 PC

Product number: 4052899105362
OSRAM GmbH

Osram LED-Driver OTe 18/220-240/500 PC

Product number: 4052899105362

Immediately available

The electronic ballast for LED modules OTe 18/220-240/500 PC from the Optotronic series from OSRAM is suitable for SELV indoor installations. Independent mounting is possible with the optional E-Style cable clamp from OSRAM.The rated power is 18 watts at an output current of 500 mA.With its compac ... Read more

€9.94

Product information "Osram LED-Driver OTe 18/220-240/500 PC"

The electronic ballast for LED modules OTe 18/220-240/500 PC from the Optotronic series from OSRAM is suitable for SELV indoor installations. Independent mounting is possible with the optional E-Style cable clamp from OSRAM.

The rated power is 18 watts at an output current of 500 mA.

With its compact dimensions of 95 x 53 x 30 mm, the constant current LED driver is also suitable for mounting in very tight spaces. The housing is IP20 protected.

The LED ECG can be dimmed via phase section dimming.

The lifespan of the OSRAM LED driver is 50,000 hours.

Technical Data

Electrical Data

Rated Voltage: 220-240V

Rated frequency: 50/60Hz

Output voltage: 18.0000-36.0000V

Output current: 0.5000-0.5000A

Conformity: CE;ENEC 10;VDE;CB

Service life: 50000h

Technical lighting data

Dimming range: 10-100%

Wattage: LED#1#9#18#0.5#0.5#18#36#1

With light source: no

Dimmable: yes

Dimensions

Width [mm]: 53mm

Height [mm]: 30mm

Length [mm]: 95mm

Housing

IP protection class: IP20

Max. housing temperature (tc,max): 80°C

Ambient temperature (ta): -20...+55°C

Item number: 4052899105362
