OSRAM GmbH

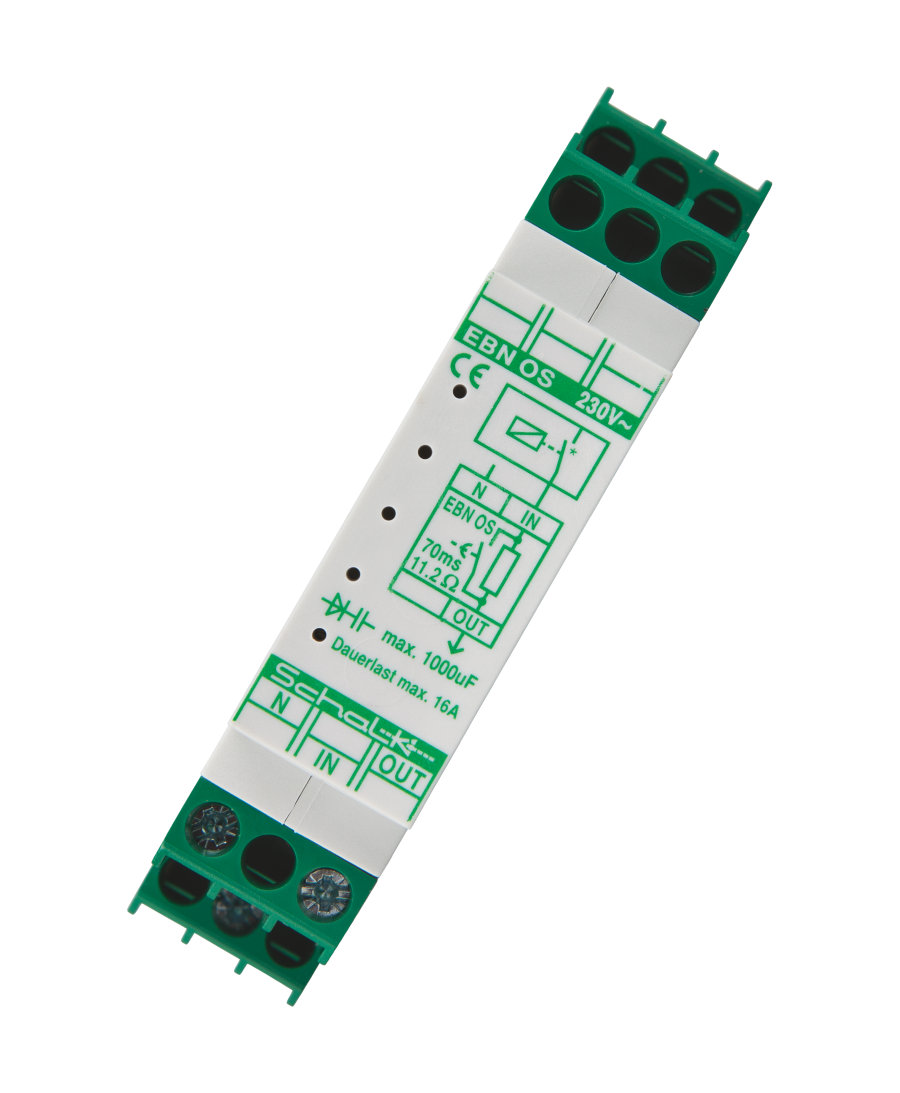

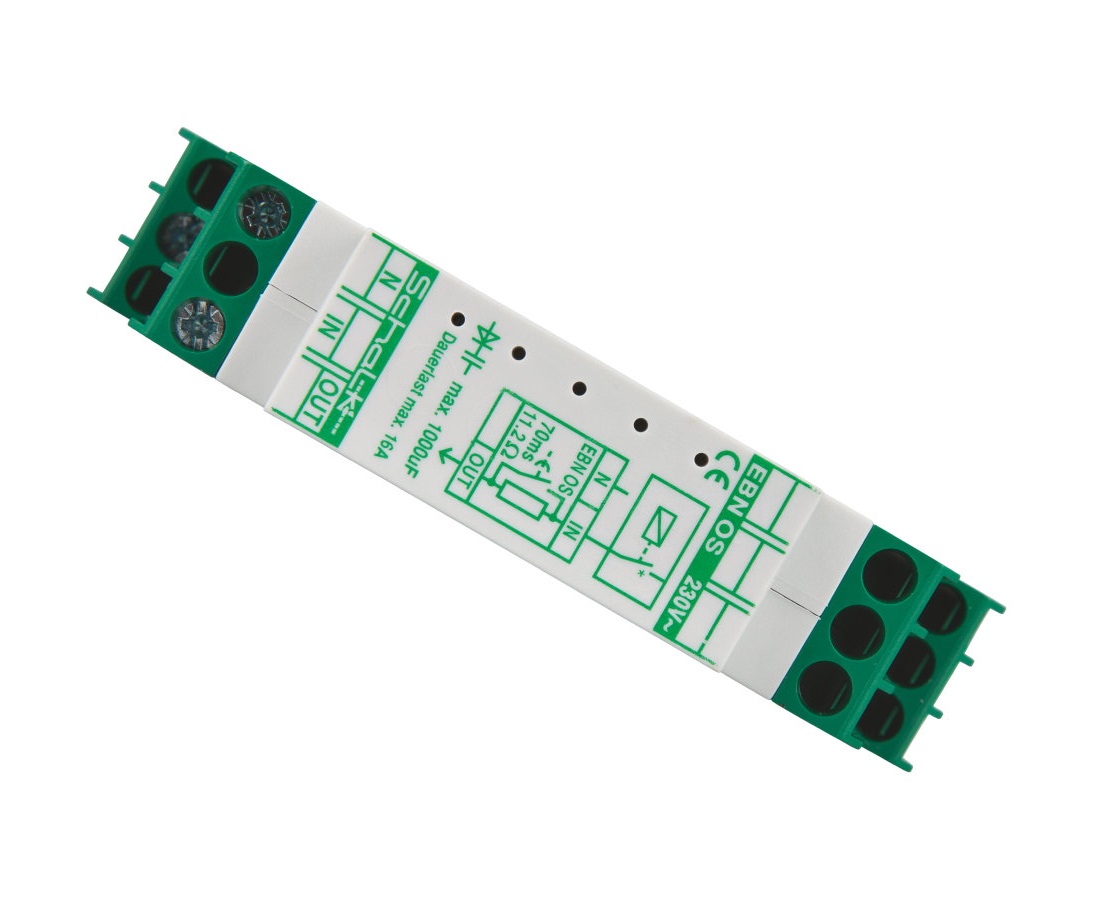

Osram ECG accessories Inrush current limiter OSRAM EBN-OS / 230 VS100
Product number:
4062172123242
OSRAM GmbH
Osram ECG accessories Inrush current limiter OSRAM EBN-OS / 230 VS100
Product number:
4062172123242
Shipping in 14 day(s)
With the inrush current limiter OSRAM EBN-OS / 230 VS100, you can increase the maximum number of ECGs per fuse box by a factor of 2.5. Depending on the plant size, you can flexibly use the inrush current limiter OSRAM EBN-OS / 230 VS100. The inrush current limiter OSRAM EBN-OS / 230 VS100 is suitab
...
Read more
€35.38
Content:
1 Stück
Prices incl. VAT plus shipping costs net €29.73
Product information "Osram ECG accessories Inrush current limiter OSRAM EBN-OS / 230 VS100"
With the inrush current limiter OSRAM EBN-OS / 230 VS100, you can increase the maximum number of ECGs per fuse box by a factor of 2.5. Depending on the plant size, you can flexibly use the inrush current limiter OSRAM EBN-OS / 230 VS100. The inrush current limiter OSRAM EBN-OS / 230 VS100 is suitable for osram POWERTRONIC and selected OPTOTRONIC ballasts. The assembly is simple and uncomplicated (H-rail mounting).
Downloads & Documents
Electrical data
| rated voltage: | 230 V |
|---|---|
| conformity: | CE |
| switching cycles: | 10000 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| material: | plastic |
| mounting: | rail |
| environment temperature from: | -10 °C |
| environment temperature to: | 40 °C |
Photometric data
| sensor: | no |
|---|---|
| color: | white |
| inclusive lamp: | no |
| sensor type: | no |
| solar panel: | no |
Logistic data
| item category: | installation materials |
|---|
Dimensions & packaging
| EAN | 4006584548019 |
|---|---|
| Length | 58 mm |
| Width | 18 mm |
| Height | 88 mm |
| Weight | 75 g |
