terminals and connectors

The right terminal for every application – from control cabinet to junction box

Terminals and connectors are the foundation of every electrical installation. Whether connecting conductors in a junction box, distributing protective conductors in a control cabinet, or branching power from a main cable – there is a terminal type for every installation situation. At WATT24 you'll find all common versions from manufacturers including WAGO, Phoenix Contact, OBO Bettermann, and Pollmann.

Filter

Filter active

Comprehensive advice & support
over 10,000 articles in the shop

Shipping in 24 hours
thousands of satisfied customers

KATHRIN BRANDT

Employee Purchasing from Troisdorf

Great advice and friendly service. I was helped immediately and competently with any questions. Gladly again.

OMAR NASER

Office Manager from Frankfurt a.M.

Goods are well packaged and arrive safely, which is important to me. My mail was answered immediately.

RAINER SEIDEL

Master carpenter from Wiesbaden

Had to replace a lamp, but the same was no longer available. Great advice, found a suitable replacement and delivered it quickly.

Terminal types at a glance

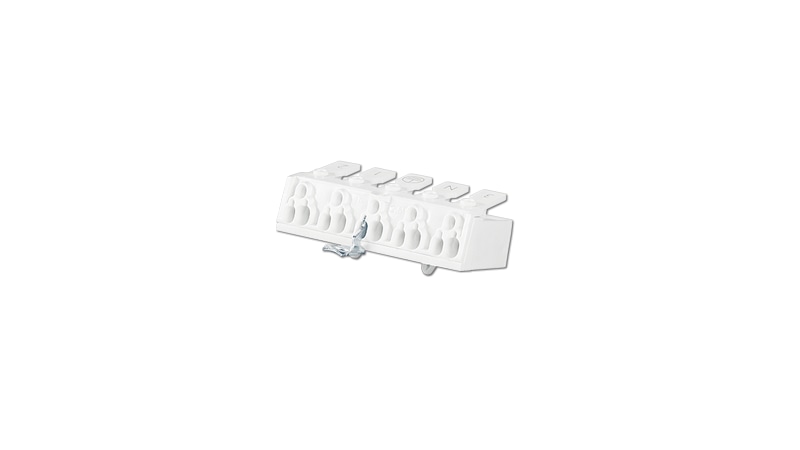

Splicing connectors – also known as plug-in connectors (lever/push-in) or choc blocks (screw connection) – are compact field connectors without a DIN rail for the direct connection of conductors in junction boxes, luminaire connections, and field wiring. All poles within a single connector are internally linked conductively.

Rail-mounted terminal blocks are DIN rail terminals for professional control cabinet assembly per IEC 60947-7-1. They are mounted on the 35 mm mounting rail (TS 35) and lined up into terminal strips. Sub-types include protective conductor terminals (PE), two-level terminals, and three-level terminals.

Branch connectors are power distribution terminals for tapping from the main conductor to one or more outgoing conductors – without interrupting the main conductor. They have an asymmetric design and are rated for large conductor cross-sections (16–150 mm²).

Terminal type	Installation	Application
Splicing connector	Without DIN rail, in the field	Junction boxes, luminaire connections, field wiring
Rail-mounted terminal	35 mm DIN rail	Control cabinet assembly, control and power circuits
Protective conductor terminal (PE)	35 mm DIN rail, conductively connected	Standards-compliant PE distribution in control cabinets
Two-level terminal	35 mm DIN rail	2 levels, space-saving wiring
Three-level terminal	35 mm DIN rail	3 levels, maximum wiring density
Branch connector	Without DIN rail, at the cable	Power distribution, main conductor branch 16–150 mm²

Not sure which type you need? Our team is happy to help – by phone, email, or via our contact form.
