How do cavity wall fixings work?

The principle is straightforward. The fixing is pushed through a pre-drilled hole in the board. As the screw is tightened, the sleeve expands or folds behind the board and creates a counter-bearing. The load is spread across a larger area behind the substrate, delivering a reliable hold even in thin-walled construction.

Selecting the right type matters. Not every cavity wall fixing suits every load or board thickness. Always follow the manufacturer's specifications for drill diameter, board thickness range and load capacity.

Metal or plastic: which cavity wall fixing for which load?

Material is the first decision:

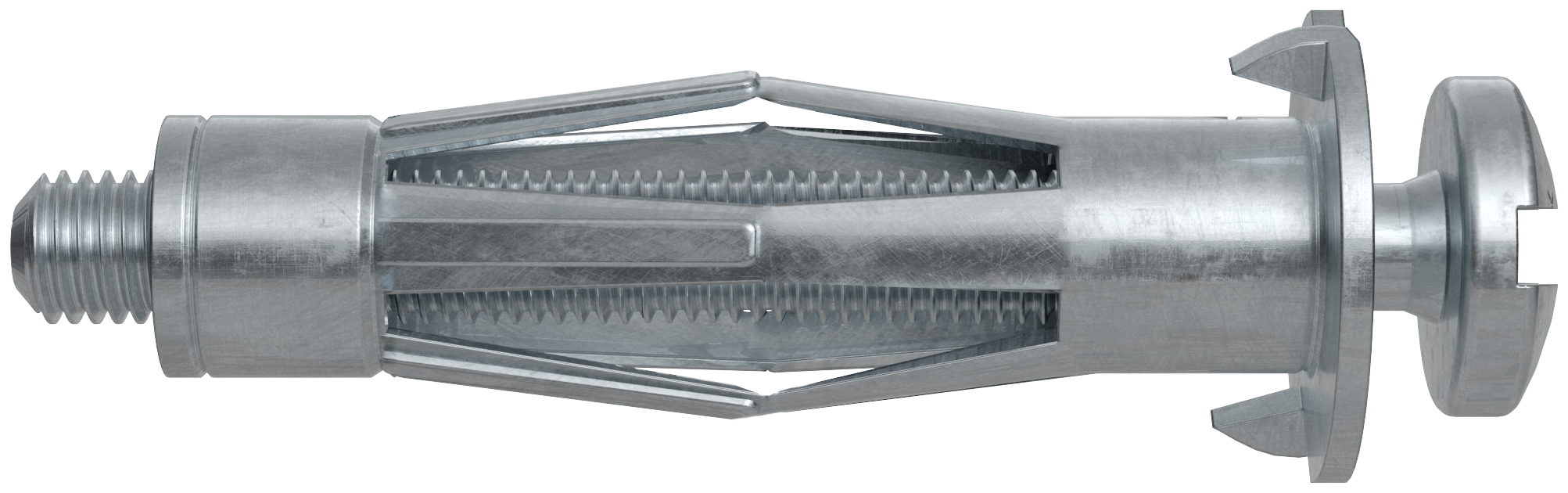

Metal cavity wall fixings (steel, galvanised or zinc die-cast) are dimensionally stable and carry substantially higher loads than plastic versions. They are the right choice for heavy objects in plasterboard and drylining: washbasins, TV wall brackets, radiator brackets, distribution boards or heavier luminaires. In electrical installation on drylining, they are the preferred fixing wherever conduit, cable clips or device boxes need to stay put permanently.

Plastic cavity wall fixings are more economical and well suited to light to medium-duty applications: pictures, shelves, cable trunking, socket faceplates or switch carriers. They are quick to install and the practical everyday choice for standard drylining work.

All load figures apply to vertical wall mounting and are indicative values. The manufacturer's specifications on the packaging are always authoritative.

Cavity wall fixings for ceiling installation

Ceiling installation is more demanding than wall mounting because the fixing works continuously against gravity. For plasterboard ceilings and hollow ceilings, only metal cavity wall fixings with screw fastening should be used. They expand evenly behind the ceiling board and maintain a reliable hold under sustained tensile load.

Cavity wall fixings for specific applications

Washbasins and sanitary fixtures

Wall-hung washbasins in drylining partitions are among the most demanding cavity fixing applications, as they carry both dead load and dynamic forces. Only large metal cavity wall fixings with a correspondingly high load rating are suitable here. As an alternative, drylining partitions can be fitted with dedicated mounting frames or backing plates that transfer the load directly into the stud frame.

TV wall brackets

Mounting a TV bracket to a plasterboard wall requires metal cavity wall fixings with adequate load capacity. The combined weight of the screen and bracket must be covered with a sufficient safety margin. For heavier screens, it is worth positioning at least one or two fixing points to land directly on a stud behind the board.

Pictures and lightweight objects

For pictures, small shelves or cable trunking in plasterboard, plastic cavity wall fixings are fully adequate. They are quick to install and the economical choice for these load levels.

Buy cavity wall fixings at WATT24

Our range covers metal and plastic cavity wall fixings in all common sizes and load classes, with many types available from stock for immediate dispatch. Not sure which fixing suits your board thickness and load? Our technical team is happy to advise.

For fixings for other substrates, see the full wall plugs and anchors overview.
