Helvar LED-Driver LC1x50-E-DA - 5543004

Helvar Oy AB

Helvar LED-Driver LC1x50-E-DA - 5543004

Product number: 5543004
Content: 1 Stück

Immediately available

€50.15


Content: 1 Stück

net €42.14

Product information "Helvar LED-Driver LC1x50-E-DA - 5543004"

Compact DALI dimmable LED ECG with up to 50W

The compact, DALI dimmable constant current LED driver LC1x50-E-DA from Helvar is suitable for installation in luminaires of protection class I and II. The driver itself has protection class II. Its rated output is up to 50 watts. It is suitable for DC operation.

The SELV output protection of the LED driver ensures safety and flexibility in luminaire design. The switch control functionality ensures easy-to-use intensity control. For overtemperature protection there is an NTC terminal. In addition, the LED ECG features the special Helvar Driver Configurator Support.

Output current adjustable

The LED ECG can be dimmed in a range of 1-100% via its DALI interface, whereby the hybrid dimming technology ensures high quality light. The output current can be adjusted between 1050 and 1400 mA. In addition, the Helvar has an integrated power monitoring (real time), Running hour monitor (accumulative) and energy management (accumulative).

The Helvar LED ECG has an adaptive overload protection up, which reduces the output current when overload is connected. Moreover, it has a Constant Light Output (CLO) (default: disabled). In addition, the LED driver has a full load detection with automatic recovery, open and short-circuit protection. The lifespan is 50,000 hours.


Electrical data
number of channels: 1
operating mode: constant current
rated voltage: 220-240 V
lifetime: 50000 h
system power: 50
Casing
form type: rectangular
max housing temperature (tc-max): 75 °C
protection type: IP20
mounting: Installation
protection class: II
environment temperature from: -20 °C
environment temperature to: 50 °C
Photometric data
dimmable: yes
dimming range to: 100 %
dimming range from: 1 %
color: white
interface: DALI
Logistic data
item category: LED drivers

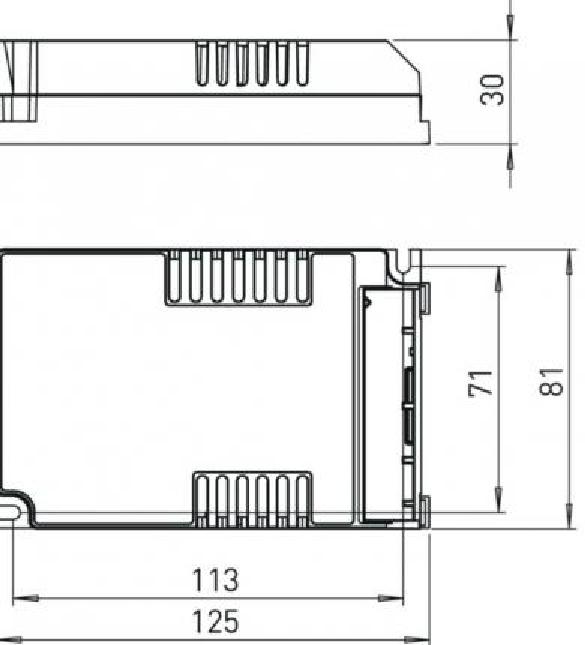

Dimensions & packaging
Length 125 mm
Width 71 mm
Height 30 mm

Helvar Oy Ab
Keilaranta 5
02150 Espoo Finnland
https://helvar.com/de/
