TCI LED-EVG ATON 30/250-700 BI - 127360
Immediately available
€31.00
net €26.05
Product information "TCI LED-EVG ATON 30/250-700 BI - 127360"
The ECG ATON 30/ 250-700 BI from TCI is suitable for the installation of LED luminaires of protection class I. It has DIP switches for adjusting the output current. Additionally, an active power factor corrector is integrated. The rated power is 30W.
The input and output terminal blocks are located on the opposide side. (Wire cross section up to 1.5 mm2 / AWG15. The constant-current driver is fastened with screws.
The ECG is protected against overheating and short circuits, mains voltage spikes and overload. The control accuracy of the output current including temperature fluctuations is + - 5%. The driver has a service life of 50,000 hours.
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
| system power: | 13 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| mounting: | Installation |
| protection class: | I |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

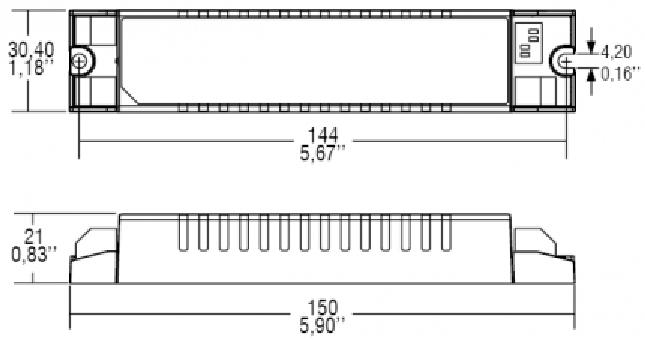

Dimensions & packaging
| EAN | 8010703315310 |
|---|---|
| Length | 30 mm |
| Width | 150 mm |
| Height | 21 mm |
