TCI ECG-LED DC 22W 1050mA W HPF - 127136
Immediately available
€26.25
net €22.06
Product information "TCI ECG-LED DC 22W 1050mA W HPF - 127136"
The emergency light appropriate constant current LED driver DC 22W 1050mA W HPF from TCI is IP20-protected and suitable for indoor use. Its Class II protection prevents electric shocks for direct or indirect contact.
The LED driver is supplied with a terminal cover and a cable retainer. The input and output terminal blocks are located on the same side (wire cross-section up to 2.5 mm2 / AWG13). There is a single terminal block on primary and secondary circuits. Clamping screws for cables with a diameter of min. 3 mm – max. 8 mm are mounted on primary and secondary circuits. The driver can be attached with screws.
The constant current LED driver DC 22W 1050mA W HPF is protected against overheating and short circuits, against mains voltage spikes and against overload. The control accuracy of the output current including temperature fluctuations is + - 7.
Electrical data
| number of channels: | 1 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| conformity: | CE, ENEC |
| lifetime: | 50000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| mounting: | surface mounting |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | no |
| color: | white |
| sensor type: | no |
Logistic data
| item category: | LED drivers |
|---|

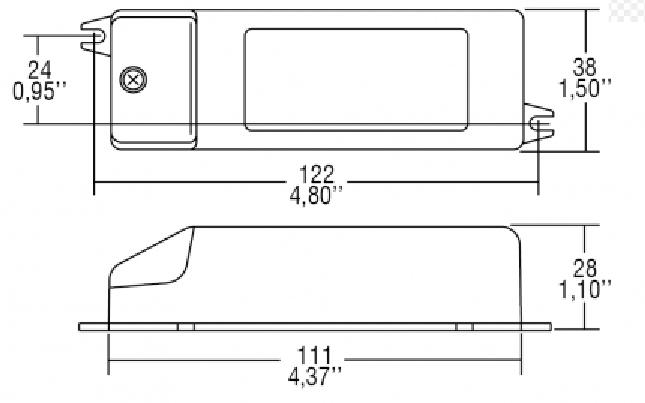

Dimensions & packaging
| EAN | 8010703316607 |
|---|---|
| Length | 38 mm |
| Width | 122 mm |
| Height | 28 mm |
| Weight | 106 g |
