Tridonic LED-Driver LC 25W 350-600mA flexC T ADV - 87500787
Tridonic LED-Driver LC 25W 350-600mA flexC T ADV - 87500787
Immediately available
€8.66
net €7.28
Product information "Tridonic LED-Driver LC 25W 350-600mA flexC T ADV - 87500787"
LED ECG for luminaire installation via busbar
The constant current LED driver LC 25W 350-600mA flexC T ADV from the Advanced in-track range from Tridonic is suitable for luminaire installation via a busbar. It is suitable for luminaires of protection class II. Ideal application areas are spotlights in retail and hospitality applications.
The LED ECG has a maximum output power of 25 watts and an efficiency of up to 84%. The output current can be adjusted between 350 and 600mA via I-select 2 plugs. The IP20-protected housing is made of black polycarbonate.
Temperature / overload / short circuit protection
The LED ECG has a temperature protection according to EN 61347-2-13 C5e. In addition, it is protected against overload, short circuits and no load, as well as against burst voltage 1 kV, surge voltage 1 kV (L to N) and surge voltage 2 kV (L/N to earth).
As an optional accessory for mounting the luminaire head, Tridonic has the ACU ALU NIPPLE M10x1 in its range. In addition, the LED driver is compatible with Global Trac PRO and Global Trac PULSE from Nordic Aluminum and OneTrack from Stucchi.
The nominal life of the LED ECG is up to 100,000 hours. Tridonic offers a 5-year warranty.
Downloads & Documents
Datasheet-Tridonic-LED-Driver-LC-25W-350-600mA-flexC-T-ADV-87500787_1592176350_3
Declaration-of-Confirmity-Tridonic-LED-Driver-LC-25W-350-600mA-flexC-T-ADV-87500787_1592176350_5
Konformitaetserklaerung-Tridonic-LED-Treiber-LC-25W-350-600mA-flexC-T-ADV-87500787_1592176350_6
Electrical data
| output current: | 350, 400, 450, 500, 550, 600 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| lifetime: | 100000 h |
Casing
| max housing temperature (tc-max): | 80 °C |
|---|---|
| protection type: | IP20 |
| mounting: | rail |
| environment temperature from: | -20 °C |
| environment temperature to: | 35 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | LED drivers |
|---|

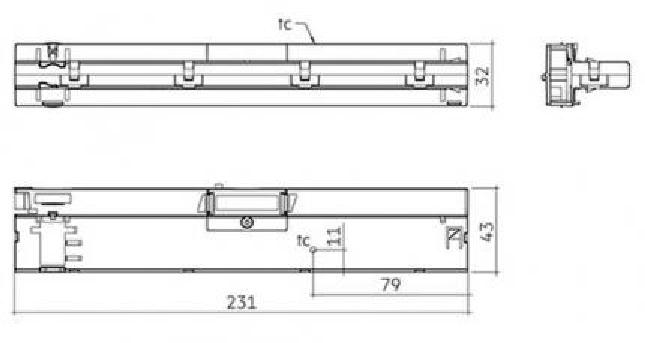

Dimensions & packaging
| EAN | 9006210686189 |
|---|---|
| Length | 231 mm |
| Width | 43 mm |
| Height | 32 mm |
