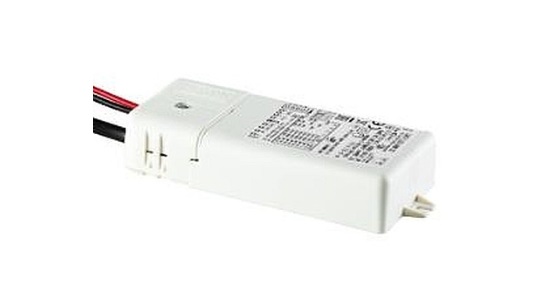

Brumberg LED converter 350 MA, DALI dimmable, (digital) – 17683020 – 425143923916 - 17683020
Brumberg LED converter 350 MA, DALI dimmable, (digital) – 17683020 – 425143923916 - 17683020
Immediately available, shipping in 1-2 business days
€60.95
Prices incl. VAT plus shipping costs net €51.22
Product information "Brumberg LED converter 350 MA, DALI dimmable, (digital) – 17683020 – 425143923916 - 17683020"
LED converter 350 mA, DALI dimmable (digital). This driver fulfills the requirements for safety lighting systems in accordance with DIN EN 50172 VDE 0108-100:2005-01. This converter is equipped with safety devices which protect it against overvoltage, short-circuit as well as thermal and electric overloads. The input and output terminals are suitable for cables with a cross-section of up to 0.75-1.5 mm². Material: Plastic, Degree of protection: according to DIN EN 60529 IP20, Protection class: (EN 61140) II, Current: 350 mA, Voltage: 230V AC 50Hz , Power: 17W, Control: DALI-2
Downloads & Documents
Electrical data
| operating frequency: | 50/60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | 220-240 V |
| conformity: | CE |
Casing
| ballproof: | no |
|---|---|
| form type: | linear |
| max housing temperature (tc-max): | 75 °C |
| protection type: | IP20 |
| material: | plastic |
| mounting: | universal mounting |
| protection class: | II |
| environment temperature from: | -25 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| dimmable: | yes |
| color: | white |
| lamp type: | LED |
| inclusive lamp: | no |
| interface: | DALI-2 |
| solar panel: | no |
Dimensions & packaging
| Length | 100 mm |
|---|---|
| Width | 100 mm |
| Height | 100 mm |
| Weight | 176 g |
