Tridonic Light Management DALI TOUCHPANEL BASIC TunableWhite - 28001990
Tridonic Light Management DALI TOUCHPANEL BASIC TunableWhite - 28001990
Shipping in 5 day(s)
€144.29
net €121.25
Product information "Tridonic Light Management DALI TOUCHPANEL BASIC TunableWhite - 28001990"
The capacitive DALI touch panel for TunableWhite luminaire control from TRIDONIC with high-quality glass display is suitable for flush-mounting.
The touch panel has a rotary switch that can be used to adjust the control panel settings and the button assignment. It also has double terminals for through-wiring.
Power is supplied directly via the DALI line. TRIDONIC offers a 5-year-guarantee on the DALI TOUCHPANEL BASIC TunableWhite.
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| through wiring: | no |
| rated voltage: | DALI bus V |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| max housing temperature (tc-max): | 60 °C |
| protection type: | IP20 |
| mounting: | flush mounting |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | DALI |
| solar panel: | no |
Logistic data
| item category: | light management |
|---|

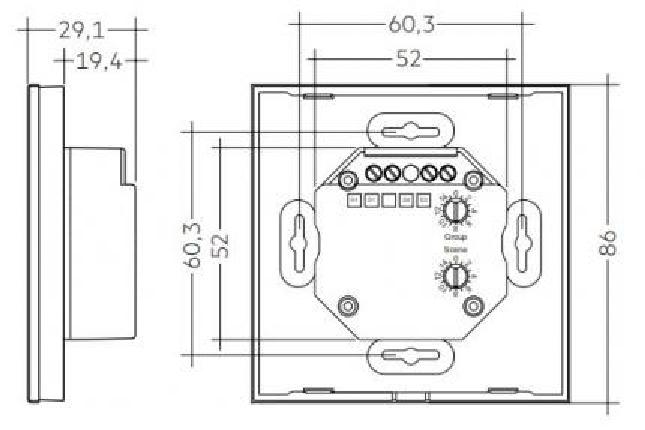

Dimensions & packaging
| EAN | 9006210642307 |
|---|---|
| Length | 86 mm |
| Width | 86 mm |
| Height | 29 mm |
