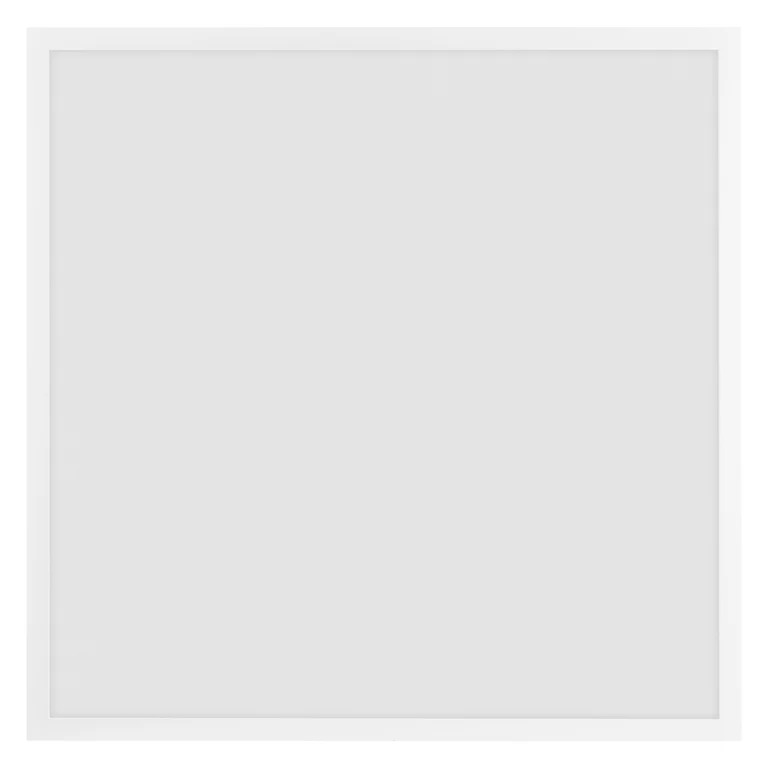

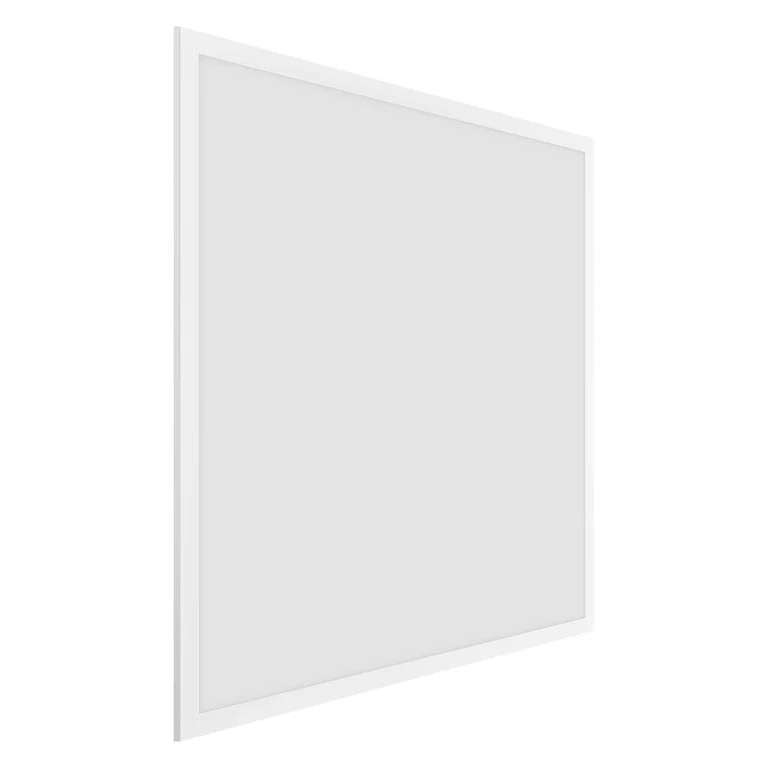

Ledvance LED-Panel PL PFM 625 DALI 36 W 4000 K UGR19 - 4058075440777
LEDVANCE
Ledvance LED-Panel PL PFM 625 DALI 36 W 4000 K UGR19 - 4058075440777
Product number:
4058075440777
Immediately available
€97.58
Prices incl. VAT plus shipping costs net €82.00
Product information "Ledvance LED-Panel PL PFM 625 DALI 36 W 4000 K UGR19 - 4058075440777"
Product advantages
- Suitable luminaire for VIVARES and other DALI-2 light management systems
- Tool-free electrical connection thanks to push-button connection terminal
- Through-wiring possible with connection box included
- Energy saving thanks to high system luminous efficacy: up to 120 lm/W
- Good glare control (UGR < 19)
- Comfortable light and high color consistency
- External driver for extended flexibility and easy installation
- Low-flicker light thanks to special electronic ballast
- 5-year guarantee
Downloads & Documents
Electrical data
| operating voltage: | 220-240 V |
|---|---|
| conformity: | CB, CE, EAC, ENEC |
| system power: | 33 |
Casing
| protection type: | IP20, IP40 |
|---|---|
| mounting: | surface mounting, Installation |
| impact resist: | IK02 |
| environment temperature from: | -10 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | yes |
|---|---|
| color code: | 840 |
| color: | white |
| color temperature [Kelvin]: | 4000 |
| inclusive lamp: | yes |
| interface: | DALI |
| lum flux: | 4320 lm |
Dimensions & packaging
| EAN | 4058075440777 |
|---|---|
| Length | 620 mm |
| Width | 620 mm |
| Height | 32 mm |
| Weight | 2.2 g |
