Lunatone DALI-2 Sequencer DIN Rail 89453371-HS
Immediately available
€243.30
net €204.45
Product information "Lunatone DALI-2 Sequencer DIN Rail 89453371-HS"
DALI-2 Sequencer DIN Rail – Item number: 89453371-HS
DALI-2 Sequencer
DALI Sequencer is a control unit to recall automatically timed instruction sequences. A sequence can combine various command-sequences and scene- recalls. 4 different sequences can be defined. The active sequence is started and stopped using DALI commands. Sequences can be executed once or looped. Housings for DIN Rail mounting and back box installation are available.
The back box version provides 4 potential free inputs to start the sequences. The DIN Rail type provides 4 switching inputs for mains voltage to start the sequences, and 4 LEDs to indicate active sequences.
Easy configuration via DALI-Cockpit PC Software.
Downloads & Documents
Electrical data
| operating frequency: | 0/50-60 Hz |
|---|---|
| rated voltage: | 230 V |
| conformity: | CE |
| terminal cross section: | 2,5 mm² |
Casing
| form type: | linear |
|---|---|
| protection type: | IP20 |
| material: | plastic |
| mounting: | DIN rail |
| environment temperature from: | -20 °C |
| environment temperature to: | 75 °C |
Photometric data
| color: | grey |
|---|---|
| interface: | DALI |
Logistic data
| country of origin: | Bulgaria |
|---|

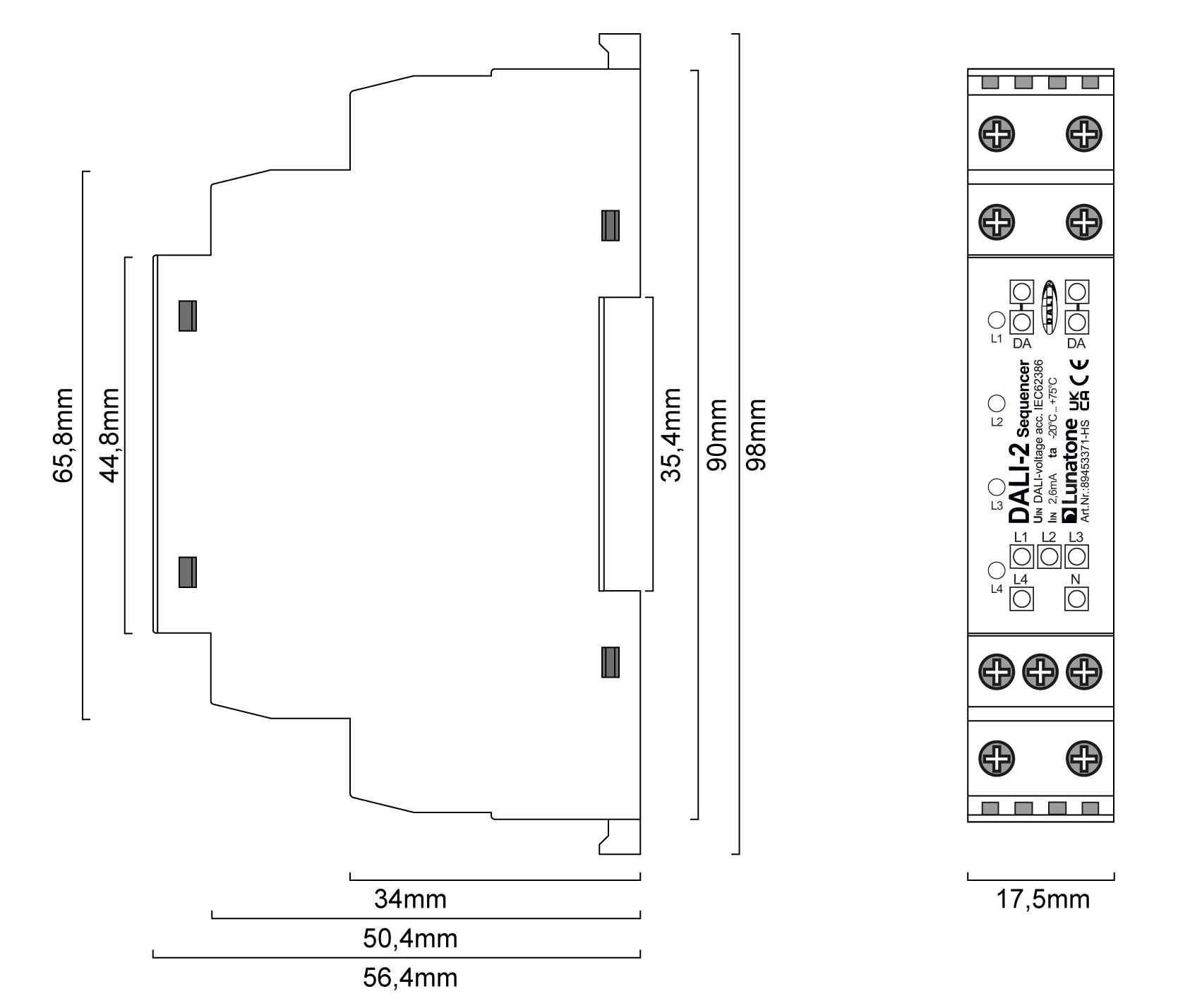

Dimensions & packaging
| EAN | 9010342016004 |
|---|---|
| Length | 98 mm |
| Width | 56 mm |
| Height | 18 mm |
| Weight | 56 g |
