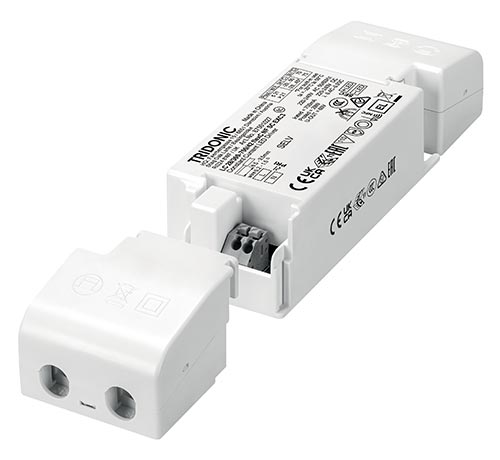

Tridonic LED driver LC 28w 300-700ma flexC NFC SC EXC3 – 87501027
Tridonic GmbH & Co KG
Tridonic LED driver LC 28w 300-700ma flexC NFC SC EXC3 – 87501027
Product number:
87501027
Content:
1 Stück
Immediately available
€17.30
Content:
1 Stück
net €14.54
Product information "Tridonic LED driver LC 28w 300-700ma flexC NFC SC EXC3 – 87501027"
Product description
- Can be either used build-in or independent with clip-on strain-relief (see accessory)
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Adjustable output current between 300 – 700 mA via NFC
- Max. output power 28 W
- Up to 86 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
Interfaces
- Near field communication (NFC)
- Terminal blocks: 45° push terminals
Functions
- Adjustable output current in 1-mA-steps (NFC)
- Constant light output function (CLO)
- Protective features (overtemperature, short-circuit, overload, no-load)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE (NFC)
- Application-oriented operating window for maximum compatibility
- Best energy savings due to low stand-by losses and high efficiency
- In-field programming possible after installation with NFC interface
Typical applications
- For downlight, spotlight and decorative applications
Downloads & Documents
Electrical data
| output current: | 300, 400, 500, 600, 650, 700 |
|---|---|
| operating mode: | constant current |
| rated voltage: | 220-240 V |
| terminal type: | plug-in terminal |
| conformity: | CE, EAC, ENEC, UKCA |
| lifetime: | 100000 h |
Casing
| form type: | rectangular |
|---|---|
| max housing temperature (tc-max): | 80 °C |
| protection type: | IP20 |
| material: | plastic |
| mounting: | universal mounting |
| protection class: | I/II |
| environment temperature from: | -20 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| interface: | NFC |
Dimensions & packaging
| Length | 97 mm |
|---|---|
| Width | 43 mm |
| Height | 30 mm |
| Weight | 94 g |
