Tridonic LED-Driver LC 21W 400–515mA 0-10V fixC lp SNC UNV - 87500902
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 21W 400–515mA 0-10V fixC lp SNC UNV - 87500902
Product number:
87500902
Shipping in 5 day(s)
€14.54
net €12.22
Product information "Tridonic LED-Driver LC 21W 400–515mA 0-10V fixC lp SNC UNV - 87500902"
Product description
- Constant current LED driver
- Only for US applications
- Dimmable via 0 ... 10 V
- Dimming range 10 to 100 %
- Class 2
- FCC Part 15
- Meets UL 8750 SF3.1
- Meets DesignLights Consortium 4.3
- Temperature protection as per UL8750/UL Recognized
- Adjustable output current 400 or 515 mA
- Max. output power 21 W
- Nominal lifetime up to 50,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: metal, white
- Type of protection IP20
- Dry and damp location
Functions
- Overload protection
- Short-circuit protection
- No-load protection
- Overtemperature protection
EAN/UPC: 9006210716602
Country of Origin: CN
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 400, 515 |
|---|---|
| operating mode: | constant current |

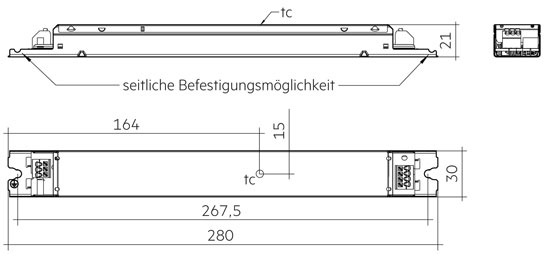

Dimensions & packaging
