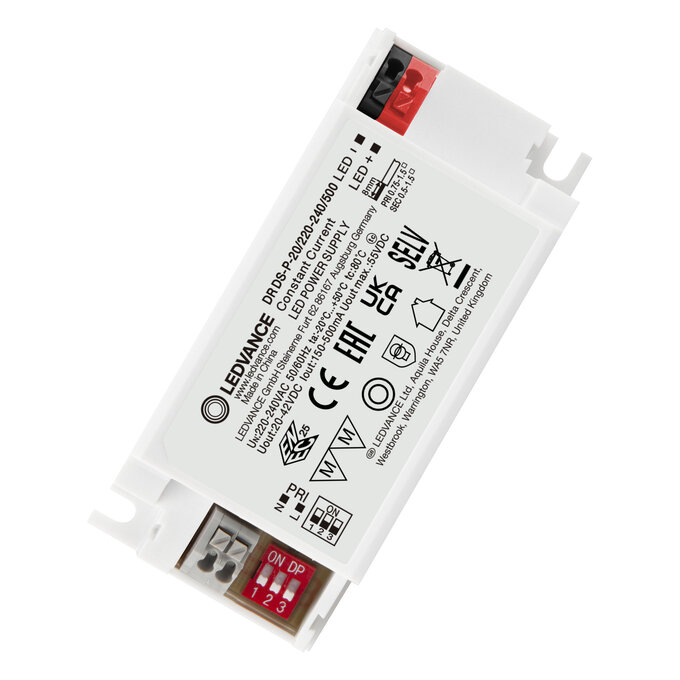

Ledvance LED-Driver DR DS-P -20/220-240/500 - 4099854077050
Immediately available
€13.17
net €11.07
Product information "Ledvance LED-Driver DR DS-P -20/220-240/500 - 4099854077050"
Product benefits
- High flexibility due to adjustable output currents via dip switch
- Low flickering enables high light quality as well as good visual comfort
- Slim housing for narrow installations
- High efficiency and reliability
Areas of application
- Suitable for LED luminaires and LED modules
- Applicable for luminaires of protection classes I and II
- For indoor SELV installations
- Offices, shopping centers, hospitals, restaurants, hotels
- Suitable for a broad range of luminaires (by broad range of dip switch currents)
Product features
- Available in 20 W, 30 W, 40 W
- Independent installation with optional Cable Clamp Kit
- Lifetime: up to 50,000 h (at max. tc temperature)
- Type of protection: IP20
- Low ripple current < 5%
- Supply voltage: 220…240 V
- Operating frequency: 50/60 Hz
- Safety according to EN 61347-1, 61347-2-3, 61347-2-13, 62384
- Immunity according to EN 61547
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
- Do not open enclosure-housing.
