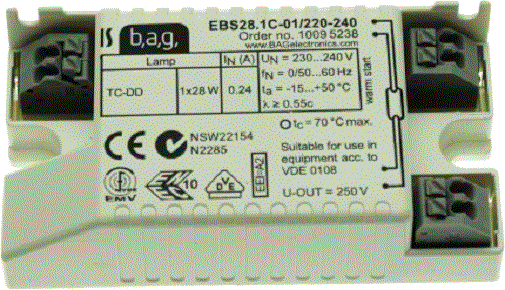

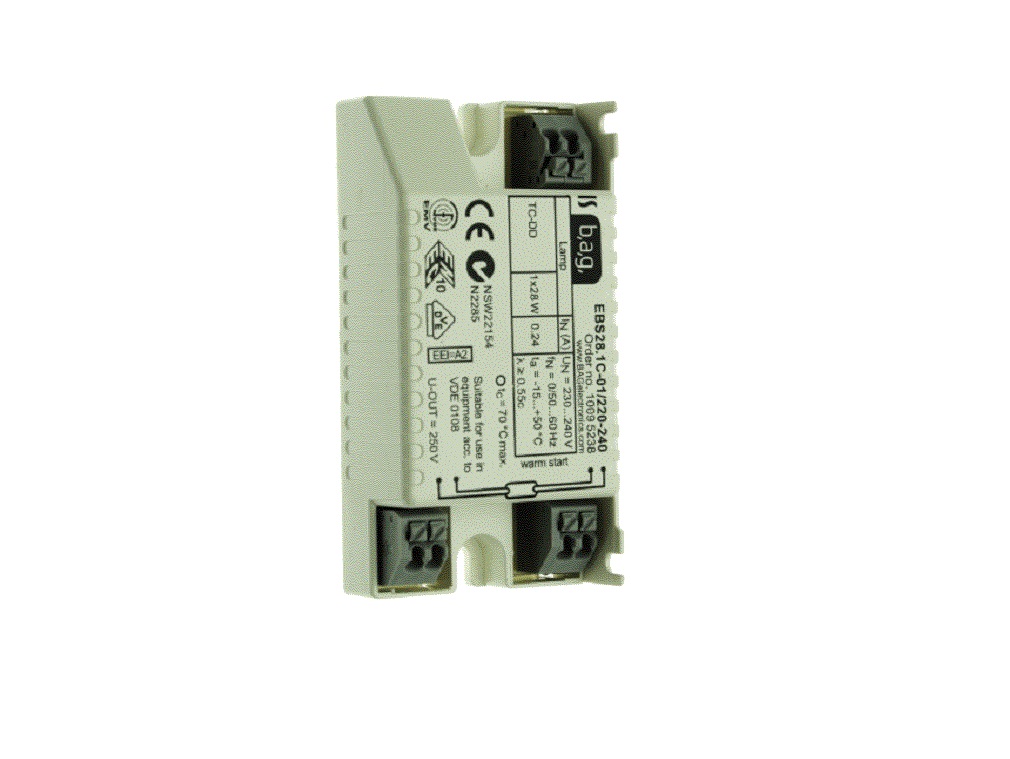

BAG EVG EBS28.1C-01/220-240 - 10095238
Content:
1 Stück
Immediately available
€14.59
Content:
1 Stück
net €12.26
Product information "BAG EVG EBS28.1C-01/220-240 - 10095238"
Electronic control gears ECG for fluorescent lamps
- electronic control gears for system rating ≤ 25 W
- electrode preserving lamp warm start for maximum lamp life; starting time < 1,5 s
- Cut-Off technology
- automatic restart after lamp replacement
- safety switch-off in case of abnormal lamp operation, e. g. defective electrode and end of lamp life; tested acc. to EN 61347-2-3
- overvoltage protection up to 320 VAC/2 h *
- certified as thermally protected ballasts, e. g. for applications in F-luminaires
- suitable for direct current operation and emergency lighting installations acc. to DIN VDE 0108
- energy efficiency index EEI=A2
- nominal service life: 40.000 h with failure rate ≤ 10% and operation at tc= tc,max
Downloads & Documents
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| system power: | 28 |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| max housing temperature (tc-max): | 70 °C |
| protection type: | IP20 |
| environment temperature from: | -15 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|
Dimensions & packaging
| Length | 80 mm |
|---|---|
| Width | 40 mm |
| Height | 21 mm |
| Weight | 50 g |
