TCI LED driver MP 50 SV BI – 127501
Content:
1 Stück
Shipping in 42 day(s)
€46.14
Content:
1 Stück
net €38.77
Product information "TCI LED driver MP 50 SV BI – 127501"
- Multipower driver supplied with dip-switch for the selection of the output current. IP20 independent driver, for indoor use (MP 50 SV K3).
- Class II protection against electric shock for direct or indirect contact (MP 50 SV K3).
- Driver for built-in use (MP 50 SV BI).
- It can be used for lighting equipment in protection class I and II (MP 50 SV BI).
- Active Power Factor Corrector.
- Auxiliary output 12 V max. 100 mA.
- Current regulation ±5 % including temperature variations.
- Input and output terminal blocks on the same side (wire cross-section up to 2,5 mm2
/ AWG13). - Clamping screws on primary and secondary circuits for cables with diameter: min. 3 mm - max. 8 mm (MP 50 SV K3).
- Driver can be secured with slot for screws.
- Protections:
- against overheating and short circuits;
- against mains voltage spikes;
- against overloads. - Thermal protection = C.5.a.
Downloads & Documents
Electrical data
| operating frequency: | 50/60 Hz |
|---|---|
| rated voltage: | 220-240 V |
| terminal type: | plug-in terminal |
| conformity: | CE, EAC, ENEC |
Casing
| fire protection: | no |
|---|---|
| form type: | rectangular |
| max housing temperature (tc-max): | 85 °C |
| protection type: | IP20 |
| material: | plastic |
| mounting: | universal mounting |
| protection class: | I/II |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|---|
| lamp type: | LED |
| interface: | DIPswitch |
| sensor type: | no |

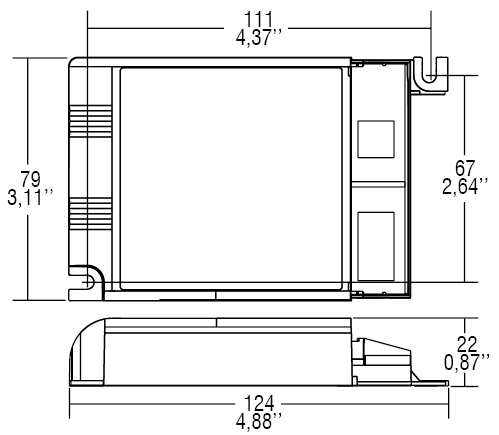

Dimensions & packaging
| Length | 124 mm |
|---|---|
| Width | 79 mm |
| Height | 22 mm |
| Weight | 205 g |
