Tridonic LED-Driver LC 14W 100–400mA 42V bDW NFC SC EXC3 - 28003713
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 14W 100–400mA 42V bDW NFC SC EXC3 - 28003713
Product number:
28003713
Shipping in 5 day(s)
€87.85
net €73.82
Product information "Tridonic LED-Driver LC 14W 100–400mA 42V bDW NFC SC EXC3 - 28003713"
- Can be integrated into Casambi systems (Casambi Ready)
- NEW: lumDATA (luminaire data, energy report and diagnostics & maintenance)
- Can be used as a built-in luminaire or independent LED driver with snap-on strain relief (see accessories)
- Automatically sets up a wireless communication network with up to 250 nodes
- Dimming range 1 - 100 % (min. 6 mA)
- For protection class I and protection class II luminaires
- Temperature protection in accordance with EN 61347-2-13 C5e
- Output current adjustable between 100 - 400 mA with NFC
- Max. Output power 14 W
- Up to 82 % efficiency
- Low power consumption in stand-by < 0.45 W
- Nominal service life up to 100,000 h
- 5-year guarantee (for conditions see https://www.tridonic.com/herstellergarantiebedingungen)
Downloads & Documents
Electrical data
| output current: | 100, 200, 300, 330, 400 |
|---|---|
| operating mode: | constant current |

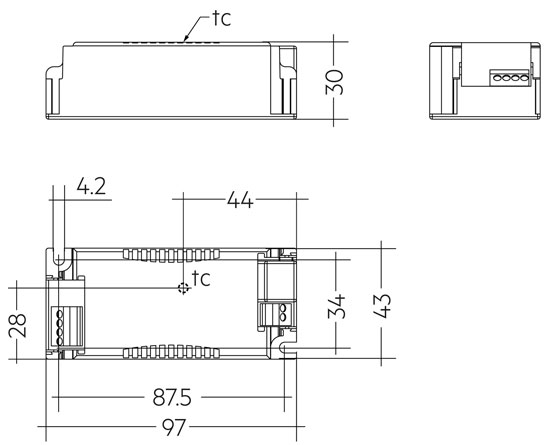

Dimensions & packaging
