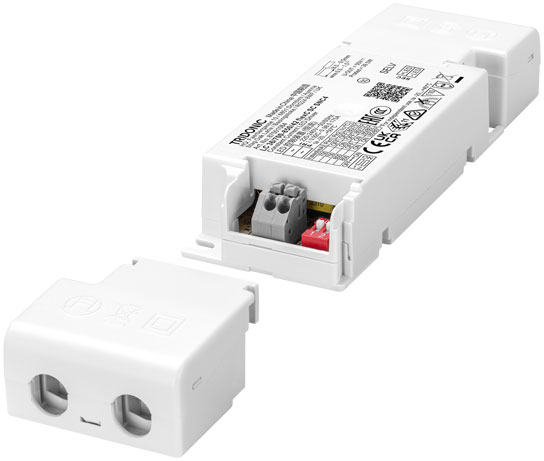

Tridonic LED-Driver LC 36W 700-850mA flexC SC SNC4 - 87501084
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 36W 700-850mA flexC SC SNC4 - 87501084
Product number:
87501084
Immediately available
€8.14
Prices incl. VAT plus shipping costs net €6.84
Product information "Tridonic LED-Driver LC 36W 700-850mA flexC SC SNC4 - 87501084"
Product description
- Fixed output LED driver
- Can be either used built-in or independent with clip-on strain-relief (see accessory)
- Independent LED driver with cable clamps
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Constant current LED driver
- Selectable fixed output current via DIP switch 700, 750, 800 and 850 mA (pre-selected current 700 mA)
- Max. output power 35.7 W
- Nominal lifetime up to 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
Functions
- Overload protection
- Short-circuit protection
- No-load protection
Typical applications
- For spot light and downlight in retail and hospitality applications
- For panel light and area light in office and education application
EAN/UPC: 9006210822150
Country of Origin: CN
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 700, 750, 800, 850 |
|---|---|
| operating mode: | constant current |

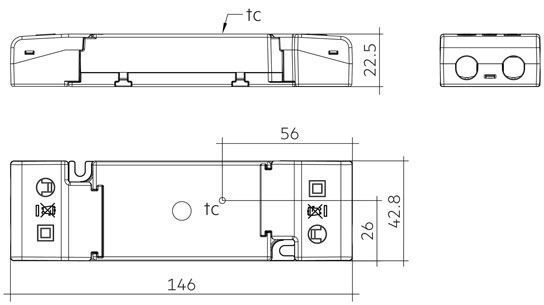

Dimensions & packaging
