Tridonic LED-Driver LC 38W 650–1050mA 42V bDW NFC SC EXC3 - 28003716
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 38W 650–1050mA 42V bDW NFC SC EXC3 - 28003716
Product number:
28003716
Immediately available
€92.32
net €77.58
Product information "Tridonic LED-Driver LC 38W 650–1050mA 42V bDW NFC SC EXC3 - 28003716"
- Can be integrated into Casambi systems (Casambi Ready)
- NEW: lumDATA (luminaire data, energy report and diagnostics & maintenance)

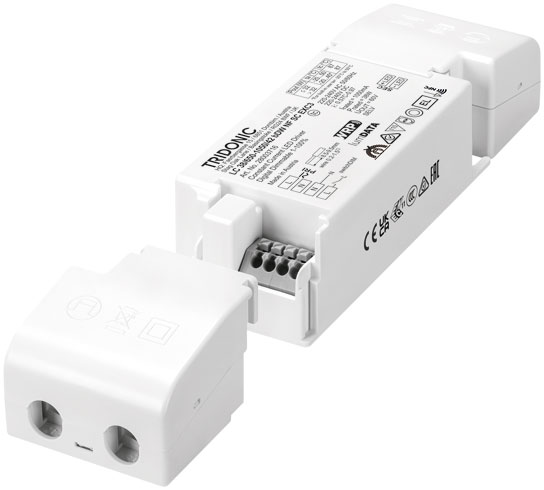

- Can be used as a built-in luminaire or independent LED driver with snap-on strain relief (see accessories)
- Automatically sets up a wireless communication network with up to 250 nodes
- Dimming range 1 - 100 % (min. 5 mA)
- For protection class I and protection class II luminaires
- Temperature protection in accordance with EN 61347-2-13 C5e
- Output current adjustable between 650 - 1,050 mA with NFC
- Max. Output power 38 W
- Up to 87 % efficiency
- Low power consumption in stand-by < 0.45 W
- Nominal service life up to 100,000 h
- 5-year guarantee (for conditions see https://www.tridonic.com/herstellergarantiebedingungen)
Downloads & Documents
Electrical data
| output current: | 650, 700, 800, 900, 1050 |
|---|---|
| operating mode: | constant current |

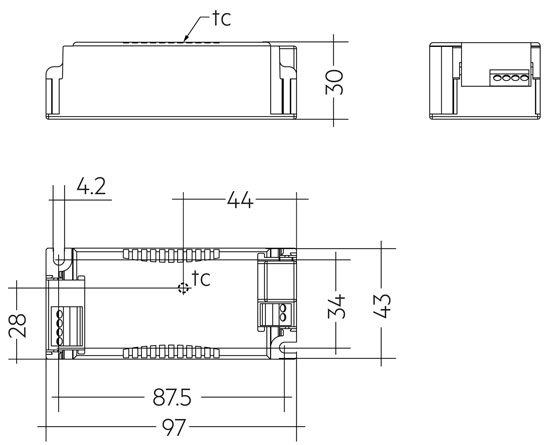

Dimensions & packaging
