Philips FL-ECG HF-B 136/236 TL-D EII 220-240V 50/60Hz - 913700192866
Philips FL-ECG HF-B 136/236 TL-D EII 220-240V 50/60Hz - 913700192866
Immediately available
€25.04
net €21.04
Product information "Philips FL-ECG HF-B 136/236 TL-D EII 220-240V 50/60Hz - 913700192866"

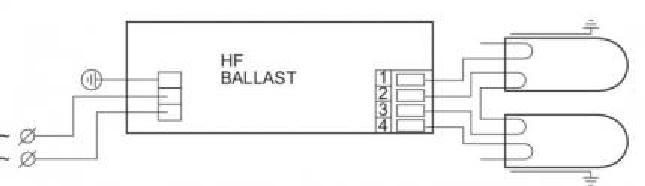

The HF-B 136/236 TL-D EII 220-240V 50 / 60Hz from Philips' HF-Basic EII range is an IP20-protected 1/2 electronic ballast for T8 fluorescent lamps which is suitable for luminaire installation. Its rated power is 36 watts.
The FL ECG is can be used as an entry-level model when converting from conventional to electronic ballasts. Additionally, it can be used in areas where the lighting should create a comfortable ambience or in which flicker-free light is needed. It is also suitable for DC emergency operation according to IEC / EN60598-22.
The HF-Basic has the energy classification Celma EEI A2 and is therefore particularly low-loss. It performs a flicker-free cold start in less than 0.5 seconds. After a voltage break or lamp replacement, an automatic restart is guaranteed.
The lifetime of the Philips FL ECG is 50,000 hours.
Ideal application areas of the HF-Basic are applications with undimmed lighting and with a very low switching frequency.
Electrical data
| energy efficiency index: | A2 |
|---|---|
| rated voltage: | 220-240 V |
| system power: | 36 |
Casing
| ballproof: | no |
|---|---|
| protection type: | IP20 |
| mounting: | Installation |
| environment temperature from: | -25 °C |
| environment temperature to: | 50 °C |
Photometric data
| color: | white |
|---|
Logistic data
| item category: | electronic ballasts |
|---|

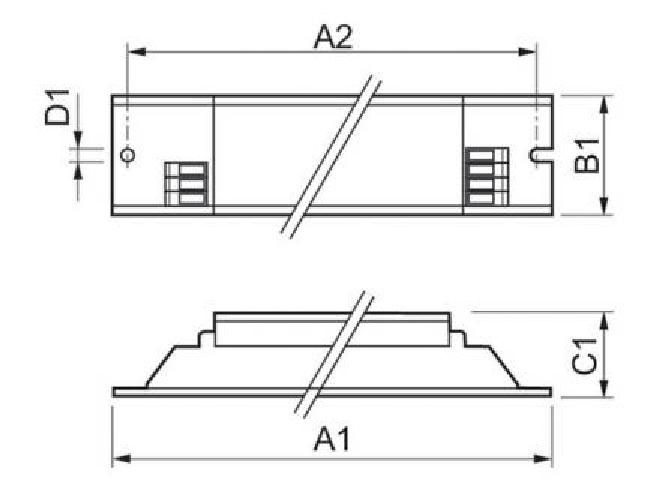

Dimensions & packaging
| EAN | 8711500931580 |
|---|---|
| Length | 280 mm |
| Width | 30 mm |
| Height | 28 mm |
| Weight | 210 g |
