Product description

• NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
• Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
• Can be either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
• The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
• one4all interface enables different dimming options
• Dimming range 1 to 100 %
• No additional external dimmer is needed
• Suitable for emergency escape lighting systems acc. to EN 50172
• Nominal lifetime up to 50,000 h
• 5 years guarantee (conditions at https://www.tridonic.com/en/int/services/manufacturer-guarantee-conditions)

• LTI (Lifetime Indicator)
• Typical applications
• Cove lighting, facade accent lighting, ceiling integration

• 24 V, 100 W

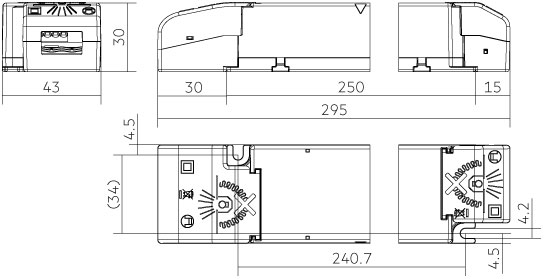

• Small design (295 x 43 x 30 mm) with stretched-compact strain relief
• Small cross section
• Push terminals for simple wiring
• Output terminals (+/–) equipped twice for more flexibility in the application

• Near field communication (NFC)
• one4all (DALI-2, DSI, switchDIM, corridorFUNCTION)
• Terminal blocks: 45° push terminals



• Tridonic LLE-FLEX ADV 600, 1,200, 1,800 lm/m
• Tridonic LLE-FLEX EXC 600, 1,200, 1,800, 2,500 lm/m
• In connection with Flex accessories wire to PCB plug
• Test the function of third party light sources before use at low dimming levels to ensure the dimming function works perfectly
