Tridonic LED-Driver LC 34W 650-800mA flexC T SNC3 - 87501038
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 34W 650-800mA flexC T SNC3 - 87501038
Product number:
87501038
Shipping in 5 day(s)
€15.97
net €13.42
Product information "Tridonic LED-Driver LC 34W 650-800mA flexC T SNC3 - 87501038"
Product description
- Constant current / in-track LED driver
- Optional accessory ACU ALU NIPPLE M10x1 for mounting the luminaire head
- Compatible 3-phase system in-tracks, see data sheet chapter 3.8
- For luminaires of protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Selectable fixed output current via DIP switch 800, 750, 700 and 650 mA (pre-selected current 650 mA)
- Max. output power 33.6 W
- Up to 87.5 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, black, white or grey
- Type of protection IP20
Functions
- Overload protection
- Short-circuit protection
- No-load protection
Typical applications
- For spot light in retail and hospitality application
EAN/UPC: 9006210792378
Country of Origin: CN
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 650, 700, 750, 800 |
|---|---|
| operating mode: | constant current |

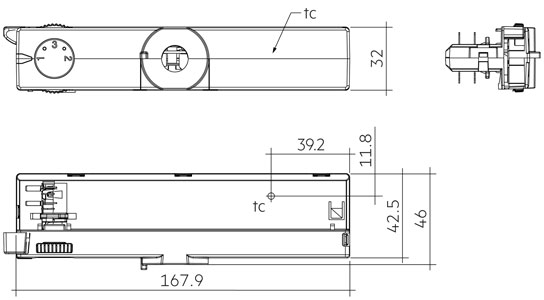

Dimensions & packaging
