Tridonic LED-Driver LC 75W 900–1900mA flexC NF h16 EXC4 - 28004412
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 75W 900–1900mA flexC NF h16 EXC4 - 28004412
Product number:
28004412
Immediately available
€34.75
net €29.20
Product information "Tridonic LED-Driver LC 75W 900–1900mA flexC NF h16 EXC4 - 28004412"
Product description
- Constant current LED driver for luminaire installation
- For class I luminaires
- Adjustable output current between 900 and 1,900 mA via NFC
- Max. output power 75 W
- Up to 87 % efficiency
- Nominal lifetime of 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Low profile metal casing with white cover
- Only 16 mm housing height
- Type of protection IP20
Interfaces
- Near field communication (NFC)
- Terminal blocks: 0° push terminals
Functions
- Adjustable output current in 1-mA-steps (NFC)
- Constant light output function (eCLO)
- Protective features (overtemperature, short-circuit, overload, no-load)
- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE
- Support NFC multiple programming (full carton box)
- Application-oriented operating window for maximum compatibility
- Best energy savings due to high efficiency
- Reliability proven by lifetime up to 100,000 h and 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Typical applications
- For linear/area lighting in office applications
EAN/UPC: 9006210796567
Country of Origin: RS
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 900, 1000, 1100, 1200, 1300, 1400, 1500, 1600, 1700, 1800, 1900 |
|---|---|
| operating mode: | constant current |

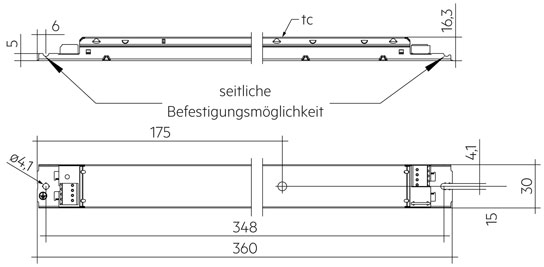

Dimensions & packaging
