Tridonic LED-Driver LC 19W 250-350mA flexC lp ADV - 28002472
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 19W 250-350mA flexC lp ADV - 28002472
Product number:
28002472
No longer available
For an alternative please contact us!
Product information "Tridonic LED-Driver LC 19W 250-350mA flexC lp ADV - 28002472"
Product description
- LED Constant current LED driver for luminaire installation
- For luminaires of protection class I and protection class II
- Temperature protection as per EN 61347-2-13 C5e
- Output current adjustable between 250 – 350 mA
- Max. output power 19 W
- Up to 84 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Low profile metal casing with white cover
- Type of protection IP20
Interfaces
- Terminal blocks: 45° push terminals
Functions
- Overload protection
- Short-circuit protection
- No-load protection
- Overtemperature protection
- Burst protection voltage 1 kV
- Surge protection voltage 1 kV (L to N)
- Surge protection voltage 2 kV (L/N to earth)
Typical applications
- For linear/area lighting in office applications
EAN/UPC: 9006210673752
Country of Origin: RS
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 250, 275, 300, 325, 350 |
|---|---|
| operating mode: | constant current |

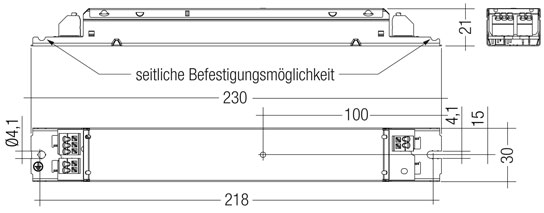

Dimensions & packaging
