Product information "TCI Sirio 100 - 127200"
Multi-potency power supply provided with dip-switches for selecting the current in
output. IP20 independent power supply unit (SIRIO 100). Protected in class II against
electric shocks by direct and indirect contacts (SIRIO 100). Power supply unit to be
incorporate (SIRIO 100 BI). Can be used for luminaires in classes of

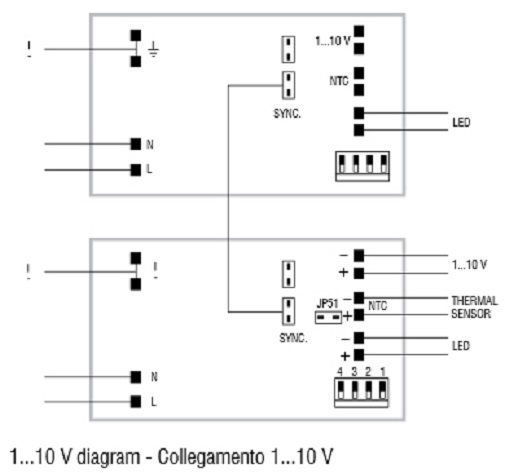

I and II protection (SIRIO 100 BI). Active PFC. Analog input for thermal sensor.
Current regulated ±5 % including temperature variations. Input terminals
and output terminals opposite (cable cross section up to 1.5 to 2.5 mm2
/ AWG15 - AWG13).
Clamps on primary and secondary for cable diameters: min. 3 mm - max. 8
mm (SIRIO 100).
Protections: thermal and short-circuit; against mains extra-voltages; against overloads. Thermal protection = C.5.a. Drivers are available with tropicalization
upon request (by adding CC to the part number).
Downloads & Documents
Electrical data
| rated voltage: | 220-240 V |
|---|
Casing
| ballproof: | no |
|---|---|
| form type: | linear |
Photometric data
| sensor: | no |
|---|---|
| color: | white |
Dimensions & packaging
