Lunatone power supply DALI 20W 800mA LED power supply CW-WW – 89453849-CWW-800
Lunatone
Lunatone power supply DALI 20W 800mA LED power supply CW-WW – 89453849-CWW-800
Product number:
89453849-CWW-800
Content:
1 Stück
Shipping in 5 day(s)
€90.07
Content:
1 Stück
net €75.69
Product information "Lunatone power supply DALI 20W 800mA LED power supply CW-WW – 89453849-CWW-800"
DALI LED-driver for Tunable White LED. Input voltage 230VAC, output with secure isolation between mains and DALI, independent control of light level and colour temperature (DT8). As alternative to the DT8 control the device also supports the operating modes Balance&Dim, Dim2Warm and SwitchDim2 (control via 2 switch inputs without DALI). Variants for constant current 350mA / 700mA and constant voltage 24V, 1A max are available.
Electrical data
| operating mode: | constant current |
|---|---|
| operating frequency: | 50-60 Hz |
| rated voltage: | 220-240 V |
| conformity: | CE |
| lifetime: | 50000 h |
Casing
| ballproof: | no |
|---|---|
| fire protection: | no |
| form type: | linear |
| protection type: | IP20 |
Photometric data
| color: | grey |
|---|---|
| lamp type: | LED |
| solar panel: | no |
Logistic data
| country of origin: | Bulgaria |
|---|

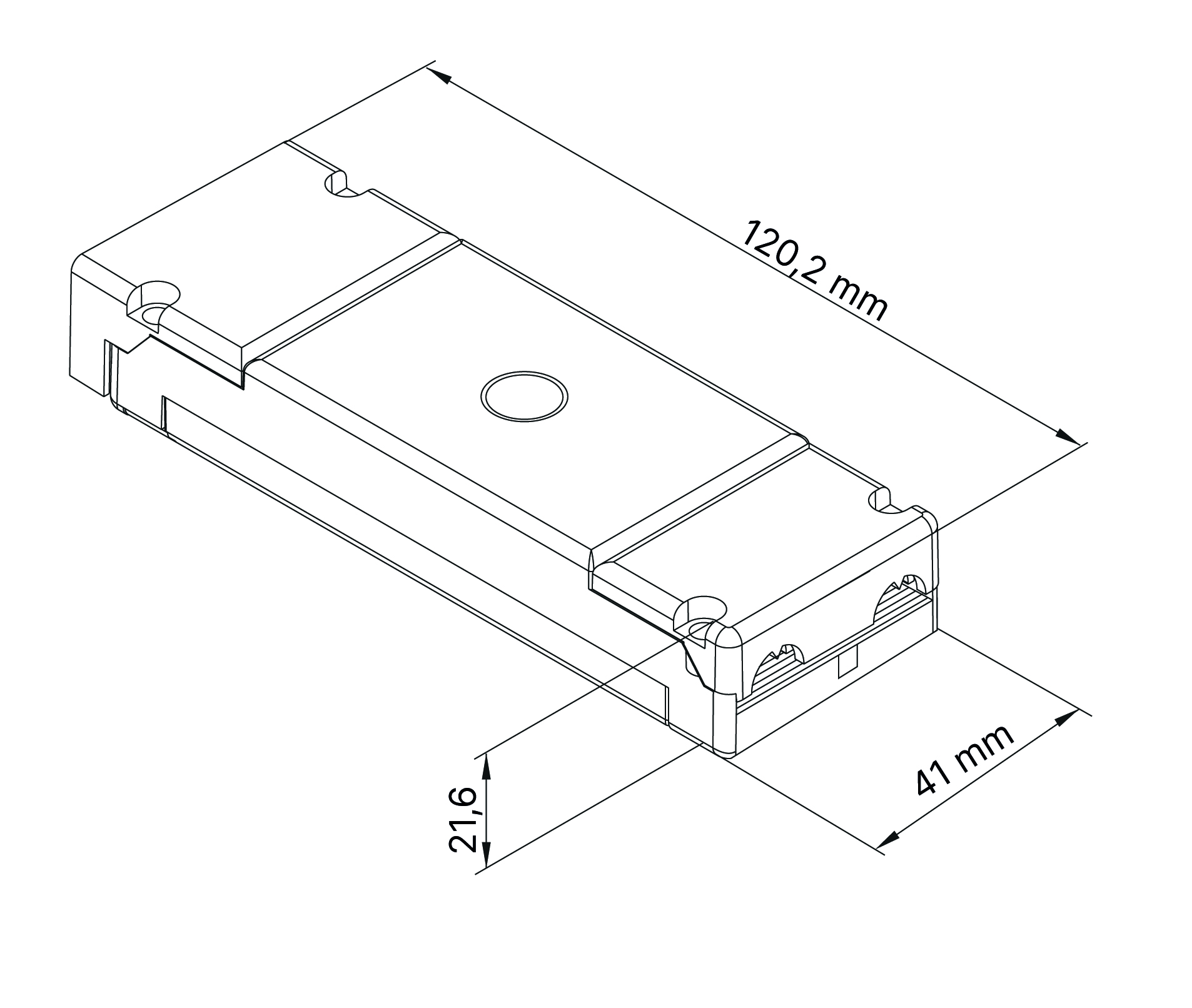

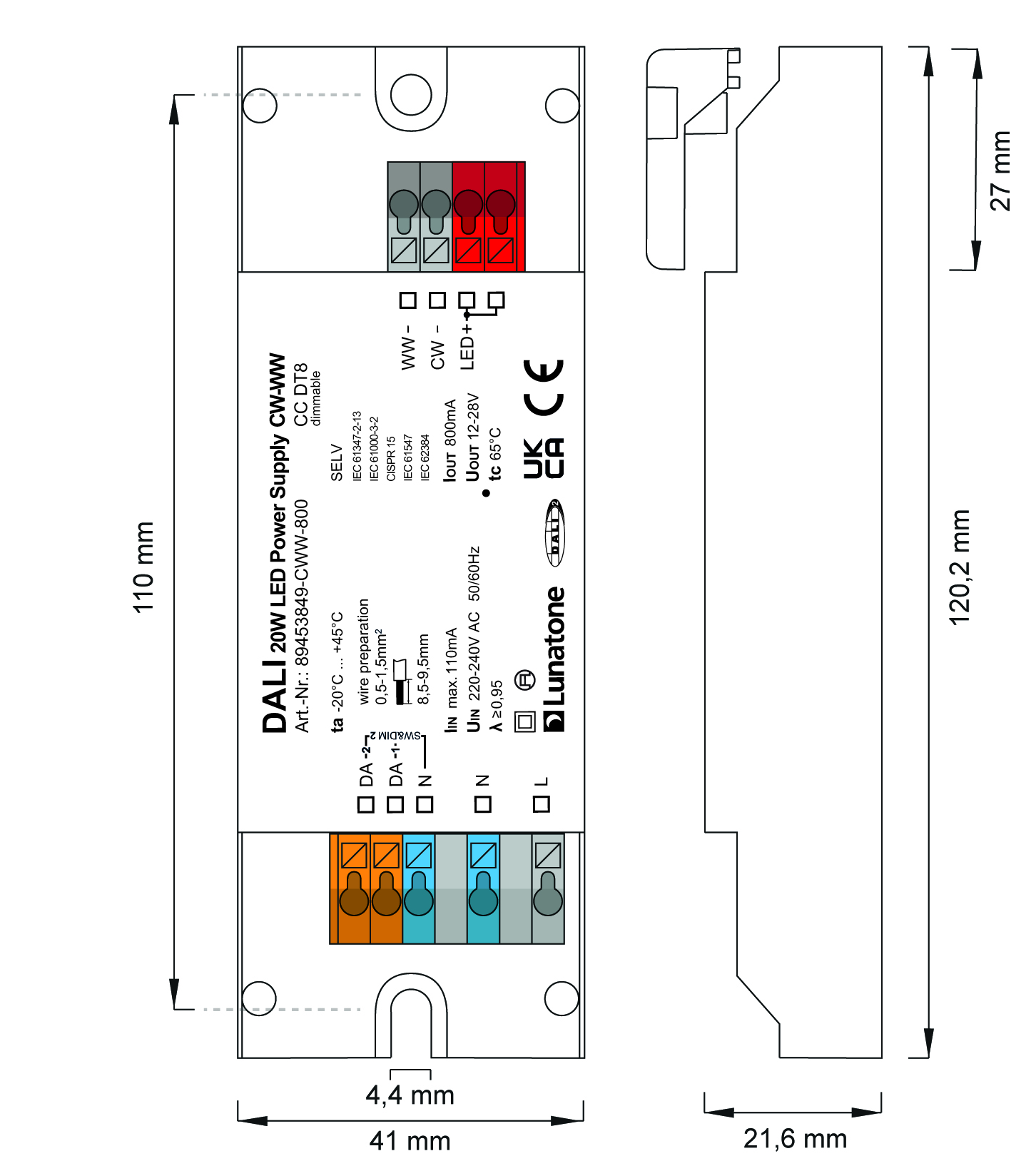

Dimensions & packaging
| EAN | 9010342014529 |
|---|---|
| Length | 120 mm |
| Width | 41 mm |
| Height | 22 mm |
| Weight | 100 g |
