Tridonic LED-Driver LC 20W 100-1050mA 44V NF SR EXC3 - 87500961
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 20W 100-1050mA 44V NF SR EXC3 - 87500961
Product number:
87500961
Immediately available
€20.77
net €17.45
Product information "Tridonic LED-Driver LC 20W 100-1050mA 44V NF SR EXC3 - 87500961"
Product description
- Independent constant current LED driver
- Output current adjustable between 100 – 1,050 mA with NFC
- Max. output power 20 W
- Up to 81 % efficiency
- Nominal lifetime up to 100,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
- Toolless mounting of strain relief
Interfaces
- Near field communication (NFC)
Functions
- Adjustable output current in 1-mA-steps (NFC)
- Protective features (overtemperature, short-circuit, overload, no-load)
- Surge protection voltage 1 kV (L – N)
- Suitable for emergency escape lighting systems acc. to EN 50172
- For cable cross-sections up to 2.5 mm²
Benefits
- Flexible configuration via companionSUITE (NFC)
- Application-oriented operating window for maximum compatibility
- New strain relief concept – fast mounting and pre-assembled connection of the LED load possible
Typical applications
- For applications in downlight and decorative luminaires
EAN/UPC: 9006210749204
Country of Origin: CN
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 100, 200, 300, 400, 500, 600, 700, 800, 900, 1050 |
|---|---|
| operating mode: | constant current |

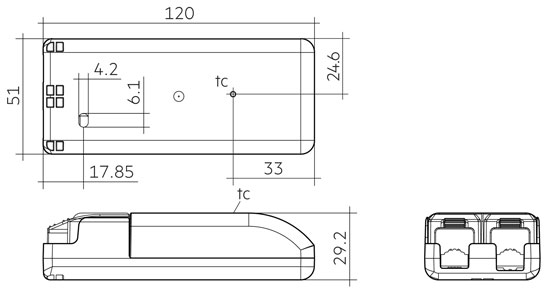

Dimensions & packaging
