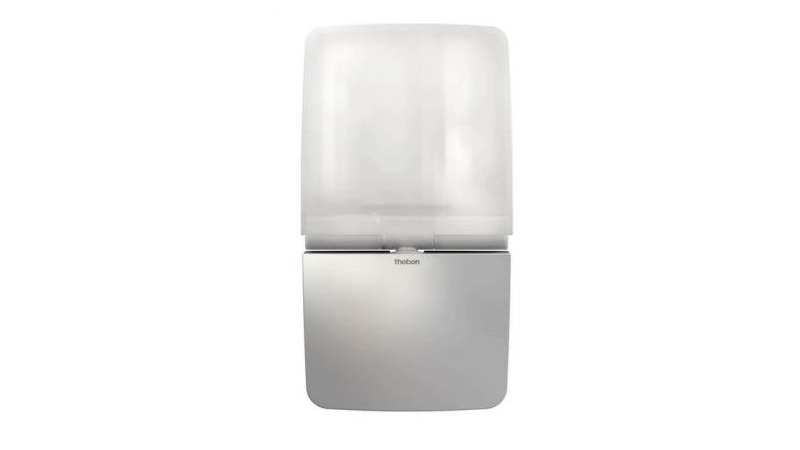

Theben LED-Spotlight 11W 4000K 900lm theLeda P12L alu - 1020742
Product information "Theben LED-Spotlight 11W 4000K 900lm theLeda P12L alu - 1020742"
LED spotlight with master-slave function
The IP55-protected aluminium LED spotlight theLeda P12L by Theben is ideal for outdoor use. It emits diffused, glare-free light with aura effect and a color temperature of 4000 K. The spotlight consists of a LED panels with 11 W (900 lm), which corresponds to approx. 140 W of a halogen lamp. Its efficiency is 82 lm/W. By master-slave function, all devices can be networked with each other.
High-quality die-cast aluminum cools the LED
The LED spotlight can be swiveled: 35° left/right, 60 ° upwards/downwards, 180° backwards. A spacer is included in delivery. The back of the spotlight is made of high-quality die-cast aluminum, which ensures optimum cooling of the high-performance LED. The theLeda P12L LED spotlight is mounted on the wall at a height of 1.8 - 2.5 m.
Downloads & Documents
Datasheet-Theben-LED-Spotlight-11W-4000K-900lm-theLeda-P12L-alu-1020742_1592147377_4
Instruction-manual-Theben-LED-Spotlight-11W-4000K-900lm-theLeda-P12L-alu-1020742_1592147377_5
Datenblatt-Theben-LED-Strahler-11W-4000K-900lm-theLeda-P12L-alu-1020742_1592147377_6
Theben AG
Hohenbergstr. 32
72401 Haigerloch
DE
info@theben.de
www.theben.de
Electrical data
| rated voltage: | 230 V |
|---|
Casing
| form type: | rectangular |
|---|---|
| protection type: | IP55 |
| mounting: | surface mounting |
| protection class: | II |
| environment temperature from: | -20 °C |
| environment temperature to: | 45 °C |
Photometric data
| sensor: | no |
|---|---|
| color code: | 840 |
| color: | grey |
| color temperature [Kelvin]: | 4000 |
| color rendering index [CRI]: | >80 |
| lamp efficiency: | 82 lm/W |
| lum flux: | 900 lm |
Logistic data
| item category: | outdoor luminaires |
|---|

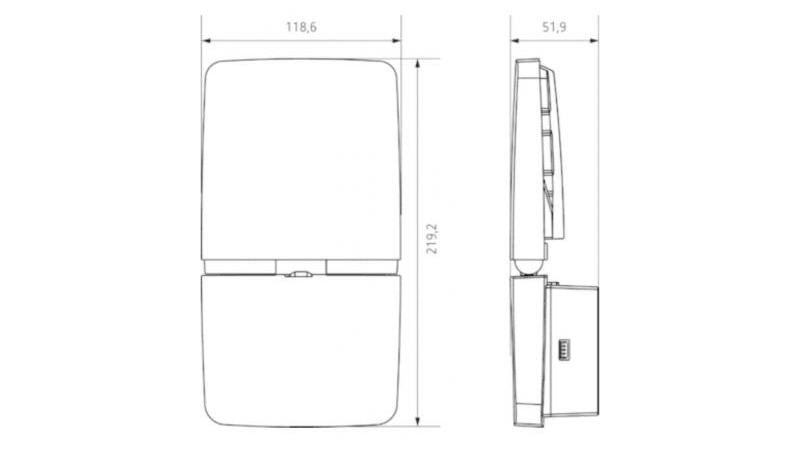

Dimensions & packaging
| EAN | 4003468100646 |
|---|---|
| Length | 52 mm |
| Width | 119 mm |
| Height | 219 mm |
| Weight | 710 g |
