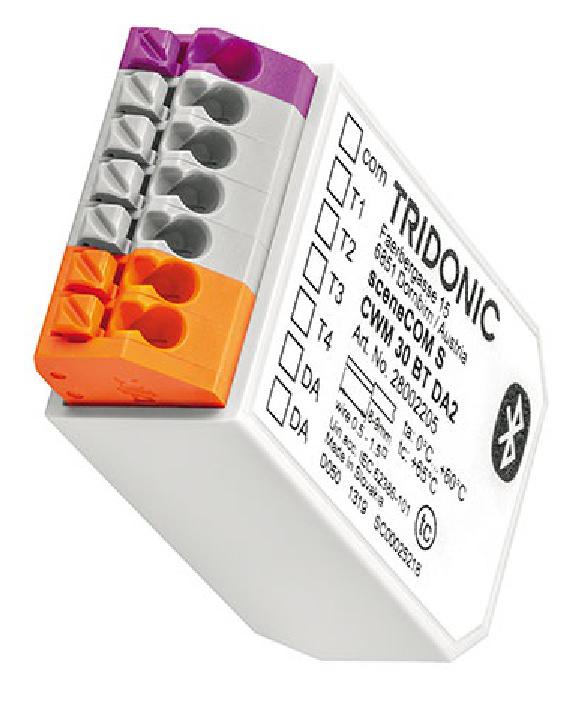

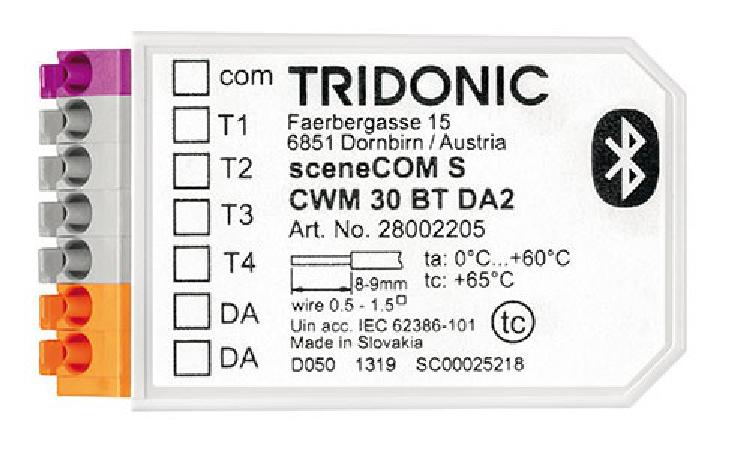

Tridonic sceneCOM S CWM 30 BT DA2 - 28002205
Product information "Tridonic sceneCOM S CWM 30 BT DA2 - 28002205"
DALI Application Controller
- Support for complete Tridonic control gear with DALI and DALI-2, as well as control gear certified by other manufacturers with DALI and DALI-2
- Future-proof thanks to simple firmware update via Bluetooth App
- 4 independent inputs enabling connection of floating contact, standard momentary switches
- Power supply via DALI line
- Small dimensions
- Future-proof thanks to simple firmware update via Bluetooth App
- 4 independent inputs enabling connection of floating contact, standard momentary switches
- Power supply via DALI line
- Small dimensions
Interfaces
- DALI line
- 4 independent inputs enabling connection of floating contact, standard momentary switches
- Wireless communications via Bluetooth
- DALI line
- 4 independent inputs enabling connection of floating contact, standard momentary switches
- Wireless communications via Bluetooth
Functions
- DALI addressing
- DALI Grouping
- Sensor-based automation including presence/movement detection, daylight-linking
- Tunable white application
- Mobile comissioning APP with the intuitive user interface availible for Android and iOS
- DALI addressing
- DALI Grouping
- Sensor-based automation including presence/movement detection, daylight-linking
- Tunable white application
- Mobile comissioning APP with the intuitive user interface availible for Android and iOS
Downloads & Documents
Electrical data
| through wiring: | no |
|---|
Casing
| ballproof: | no |
|---|
Photometric data
| sensor: | no |
|---|---|
| color: | white |
Dimensions & packaging
| Length | 48 mm |
|---|---|
| Width | 29 mm |
| Height | 15 mm |
