Tridonic resistor I-SELECT 2 PLUG 2100MA BL - 28001139
Tridonic resistor I-SELECT 2 PLUG 2100MA BL - 28001139
Immediately available
€0.92
Prices incl. VAT plus shipping costs net €0.77
Product information "Tridonic resistor I-SELECT 2 PLUG 2100MA BL - 28001139"

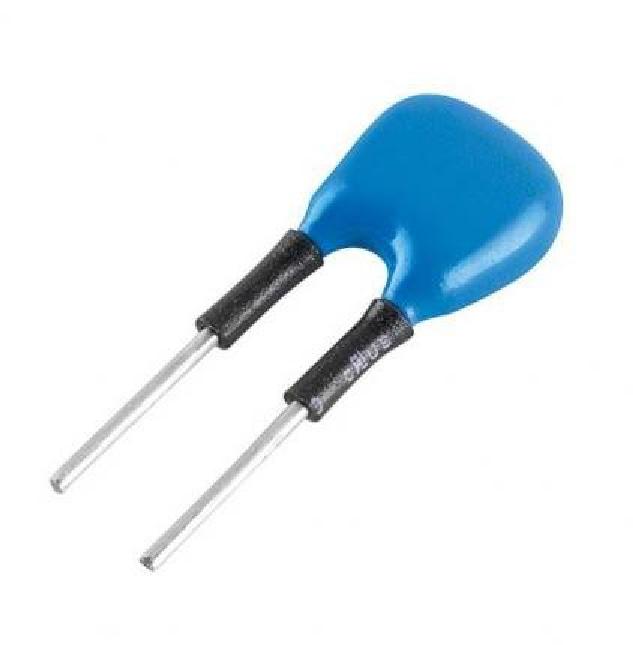

With the TRIDONIC I-SELECT 2 PLUG 2100MA BL ready-to-use resistor for 2,100mA und 2.38 kO, you can adjust the output current of TRIDONIC LED control gears. It is compatible with LED drivers with I-Select 2 interface as well as LED drivers of the PRE and EXC series.
The resistor is base isolated and has a resistor power of 0.25 watts. The current tolerance is + - 2% in addition to the output current tolerance.
Downloads & Documents
Datasheet-Tridonic-resistor-I-SELECT-2-PLUG-2100MA-BL-28001139_1592167459_4
Konformitaetserklaerung-Tridonic-Widerstand-I-SELECT-2-PLUG-2100MA-BL-28001139_1592167459_5
Declaration-of-Conformity-Tridonic-resistor-I-SELECT-2-PLUG-2100MA-BL-28001139_1592167459_7
Electrical data
| through wiring: | no |
|---|
Casing
| ballproof: | no |
|---|
Photometric data
| sensor: | no |
|---|---|
| color: | blue |
Logistic data
| item category: | installation materials |
|---|

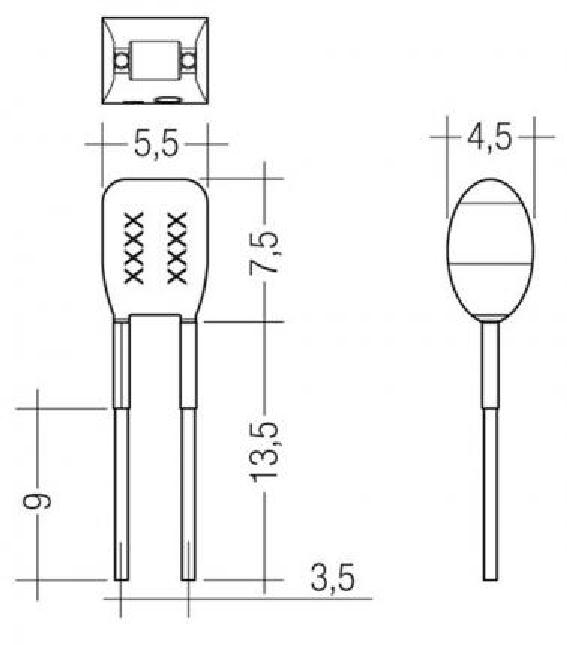

Dimensions & packaging
| EAN | 9006210551630 |
|---|---|
| Length | 21 mm |
| Width | 4 mm |
| Height | 5 mm |
