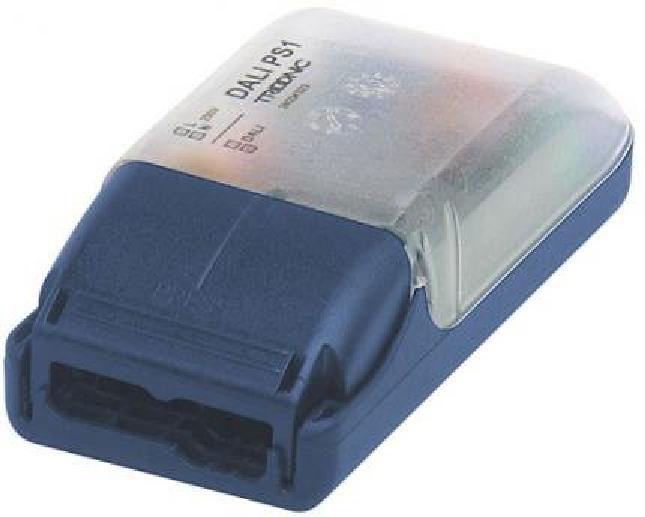

Tridonic power supply DALI-PS1 - 24034323
Product information "Tridonic power supply DALI-PS1 - 24034323"
The "DALI power supply DALI-PS1" is a full-fledged power supply (often also called DALI power supply or DALI power supply/PS) for your DALI application.
You can use it to power the max. number of 64 DALI devices (current consumption 2 mA per device) or control modules from e.g. TRIDONIC or Lunatone (current consumption 6mA per device).
The most important product features of the TRIDONIC DALI-PS1 at a glance:
- For power supply with 200 mA of DALI operating devices or control modules without own power supply
- Surface mount housing
- 5 years warranty
Downloads & Documents
Electrical data
| rated voltage: | 230-240 V |
|---|---|
| terminal type: | Push-in CAGE CLAMP® |
| system power: | 4 |
Casing
| protection type: | IP20 |
|---|---|
| environment temperature to: | 50 °C |
Photometric data
| interface: | DALI |
|---|
Logistic data
| item category: | light management |
|---|

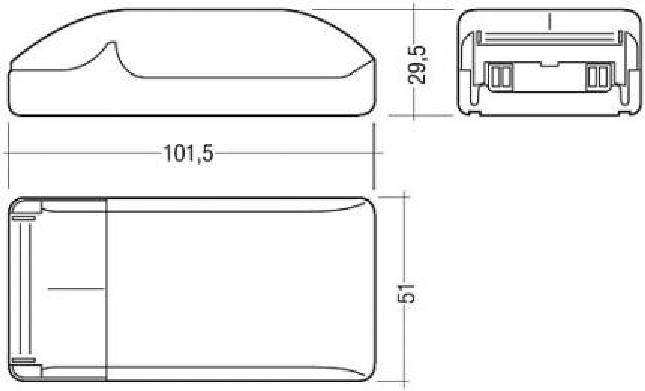

Dimensions & packaging
| EAN | 9006210147925 |
|---|---|
| Length | 102 mm |
| Width | 51 mm |
| Height | 30 mm |
| Weight | 92 g |
