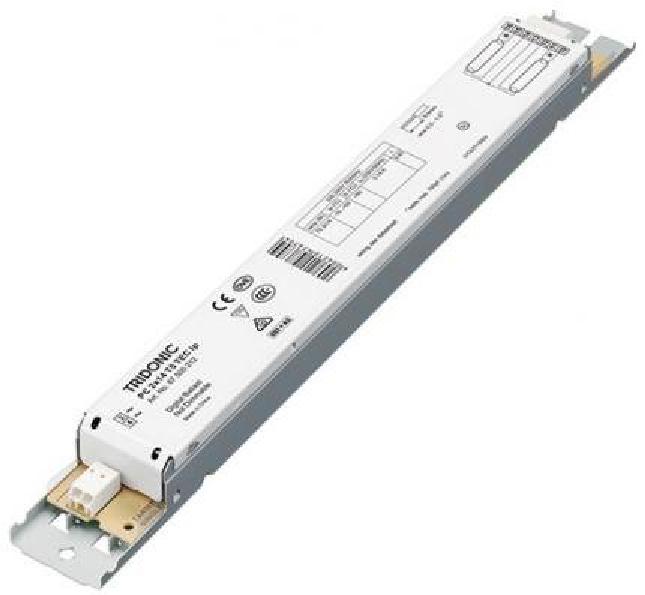

Tridonic PC 1x14 T5 TEC lp - 87500211
Product information "Tridonic PC 1x14 T5 TEC lp - 87500211"
Temperature protection as per EN 61347-2-3 C5e
Large temperature range (for values see table)
Automatic start after replacement of defective lamps
Safety shutdown of defective lamps and at end of lamp life
CELMA Energy Efficiency Index A2
Nominal life-time up to 30,000 h (at ta 50 °C with a failure rate ≤ 0.3 % per 1,000 h)
Lamp preheating for min. 30,000 starts without replacement of lamps (15,000 for 1x14 W application)
Large temperature range (for values see table)
Automatic start after replacement of defective lamps
Safety shutdown of defective lamps and at end of lamp life
CELMA Energy Efficiency Index A2
Nominal life-time up to 30,000 h (at ta 50 °C with a failure rate ≤ 0.3 % per 1,000 h)
Lamp preheating for min. 30,000 starts without replacement of lamps (15,000 for 1x14 W application)
Downloads & Documents
Login
Electrical data
| number of channels: | 1 |
|---|---|
| energy efficiency index: | A2 |
| rated voltage: | 220-240 V |
| system power: | 14 |
Casing
| form type: | linear |
|---|---|
| max housing temperature (tc-max): | 60 °C |
| protection type: | IP20 |
| environment temperature from: | -10 °C |
| environment temperature to: | 50 °C |
Photometric data
| dimmable: | no |
|---|---|
| color: | white |
Logistic data
| item category: | electronic ballasts |
|---|

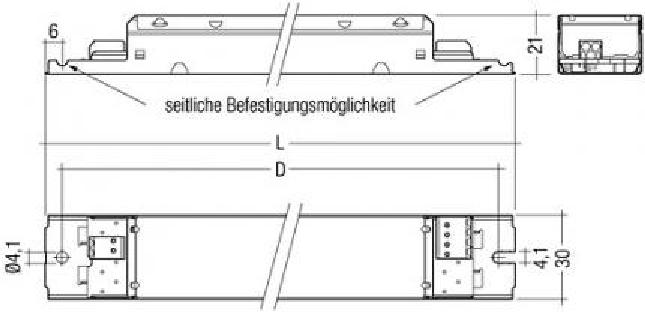

Dimensions & packaging
| EAN | 9006210476674 |
|---|---|
| Length | 230 mm |
| Width | 30 mm |
| Height | 21 mm |
| Weight | 112 g |
