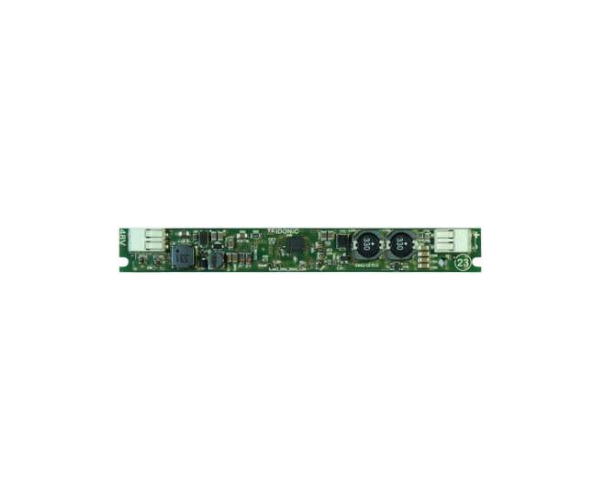

Tridonic LMI G2 48V 700–1050mA 3–20V DIM Slim - 28001583
Tridonic GmbH & Co KG
Tridonic LMI G2 48V 700–1050mA 3–20V DIM Slim - 28001583
Product number:
28001583
Shipping in 5 day(s)
€32.77
net €27.54
Product information "Tridonic LMI G2 48V 700–1050mA 3–20V DIM Slim - 28001583"
Product description
- DALI dimmable
- Note: Due to PLC technology the LMI LED driver only works with Tridonic 48 V DC string LED drivers. Error-free operation with 48 V Drivers from other manufacturers is not guaranteed.
- Up to 90 % efficiency
- Output voltage range 3 – 20 V
- Adjustable output current between 700 and 1,050 mA
- Pure AM dimming down to 5 %
- Max. tc point temperature 105 °C
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Pure PCB for built-in application
- Suitable for class III applications
Interfaces
- DALI – DT 6
- Terminal blocks: 0° push terminals
Functions
- Adjustable output current
- Protective features (overtemperature, short-circuit, no-load)
Benefits
- Application-oriented operating window
- Small dimensions for miniaturization of luminaires
EAN/UPC: 9006210595061
Country of Origin: AT
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 700, 750, 800, 850, 900, 950, 1000, 1050 |
|---|---|
| operating mode: | constant current |

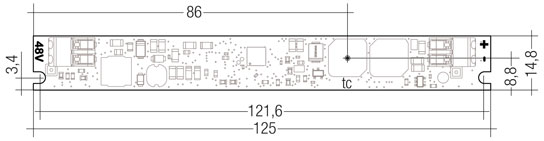

Dimensions & packaging
