Tridonic Light management Build-In DALI2-Msensor G3 SRC 30 PIR 5DPI WH - 28002386

Tridonic GmbH & Co KG

Tridonic Light management Build-In DALI2-Msensor G3 SRC 30 PIR 5DPI WH - 28002386

Product number: 28002386

Immediately available

€78.55


Content: 1 Stück

Prices incl. VAT plus shipping costs net €66.01

Product information "Tridonic Light management Build-In DALI2-Msensor G3 SRC 30 PIR 5DPI WH - 28002386"

DALI2 multi-sensor for ceiling installation

The Tridonic DALI2 multisensor "DALI2-Msensor G3 SRC 30 PIR 5DPI WH" is a sensor developed to work with the latest DALI specification. It is suitable for monitoring ambient light and motion detection. There is also a shutter to prevent motion detection in one direction and a remote control interface allowing infrared remote control interaction. The sensor is suitable for ceiling installation.

Parameters individually adjustable

The parameters can be adjusted individually via a configuration software. Power is supplied directly via the DALI line. The IP20-protected housing is made of white polycarbonate. The wide range of accessories allows an extended application range. Tridonic offers a 5-year warranty on the DALI2 multisensor.


Electrical data
through wiring: no
rated voltage: DALI bus V
Casing
ballproof: no
fire protection: no
form type: round
max housing temperature (tc-max): 60 °C
protection type: IP20
mounting: Installation
environment temperature from: -20 °C
environment temperature to: 50 °C
Photometric data
sensor: yes
dimmable: no
detection angle: 84 °
color: white
sensor type: passive infrared
solar panel: no

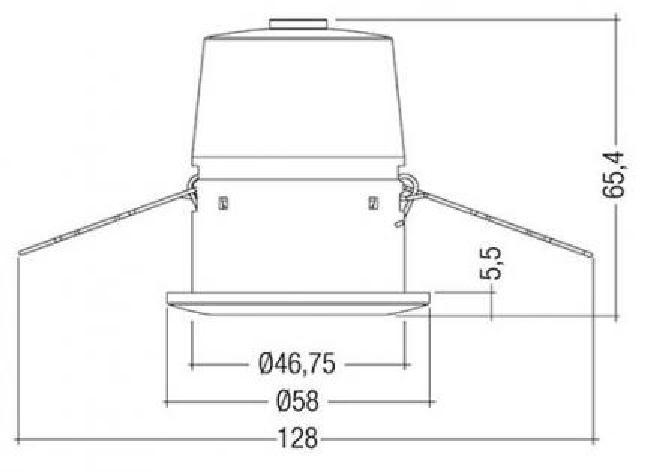

Dimensions & packaging
EAN 9006210666693
Length 58 mm
Width 58 mm
Height 65 mm
