Tridonic LED emergency light EM Ready2Apply ST NM 132 2W - 89800540

Tridonic GmbH & Co KG

Tridonic LED emergency light EM Ready2Apply ST NM 132 2W - 89800540

Product number: 89800540

No longer available

For an alternative please contact us!

Product information "Tridonic LED emergency light EM Ready2Apply ST NM 132 2W - 89800540"

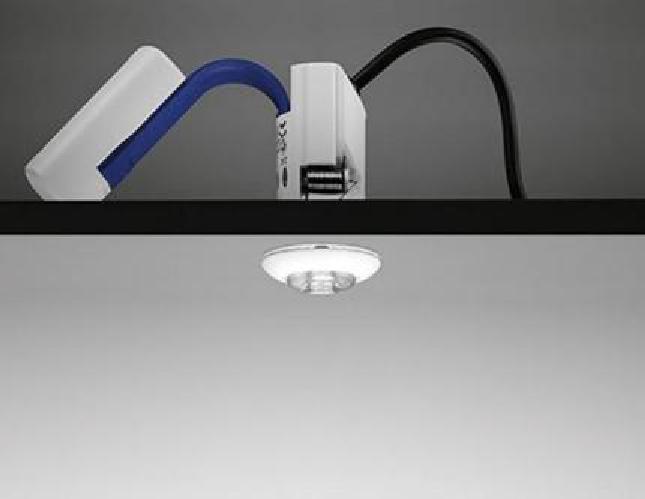

LED emergency module suitable for direct installation in ceilings

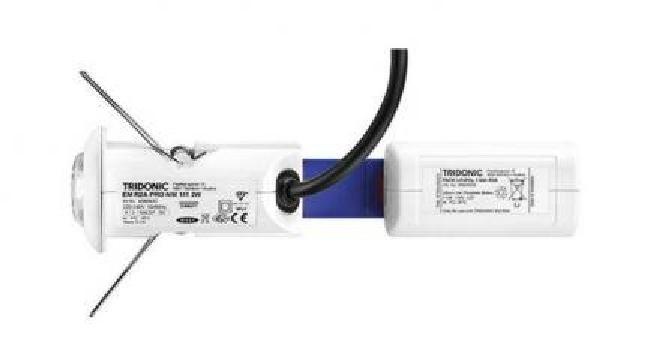

Complete set with integrated electronics, LED module, heat sink, optics and battery

Includes click-in multi-lens option for anti-panic, escape route and spot illumination

Emergency lighting with self-test function

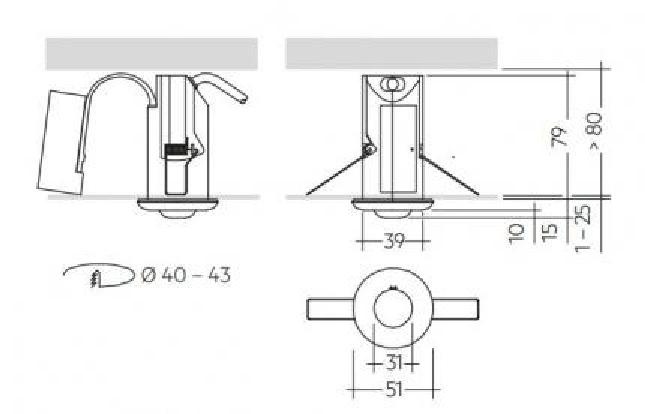

Small size ceiling hole, 40 – 43 mm diameter, 80 mm height

Electrical data
rated voltage: 220-240 V
lifetime: 50000 h
Casing
protection type: IP20
mounting: Installation
protection class: II
environment temperature from: 5 °C
environment temperature to: 30 °C
Photometric data
sensor: no
color code: 865
color: white
color temperature [Kelvin]: 6500
color rendering index [CRI]: >80
Logistic data
item category: LED emergency luminaires
Dimensions & packaging
EAN 9006210632421
Length 79 mm
