Tridonic LED emergency light EM Ready2Apply ST NM 132 2W - 89800540
Tridonic LED emergency light EM Ready2Apply ST NM 132 2W - 89800540
Immediately available
€142.24
Prices incl. VAT plus shipping costs net €119.53
Product information "Tridonic LED emergency light EM Ready2Apply ST NM 132 2W - 89800540"

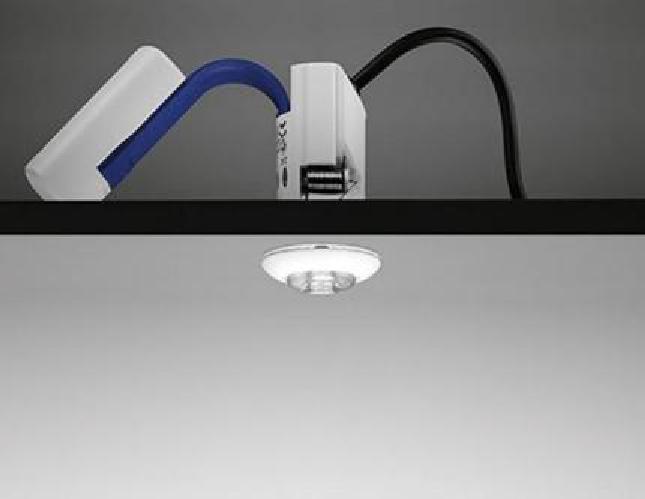

LED emergency module suitable for direct installation in ceilings

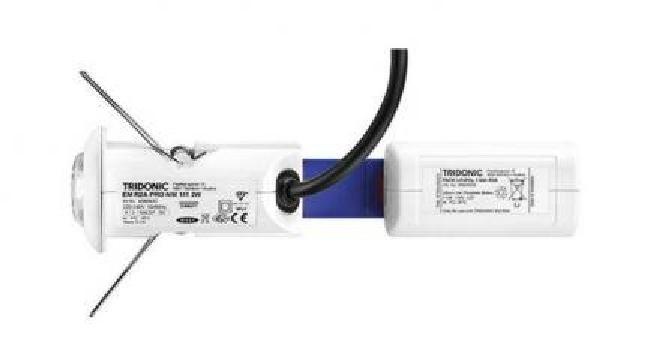

Complete set with integrated electronics, LED module, heat sink, optics and battery
Includes click-in multi-lens option for anti-panic, escape route and spot illumination
Emergency lighting with self-test function

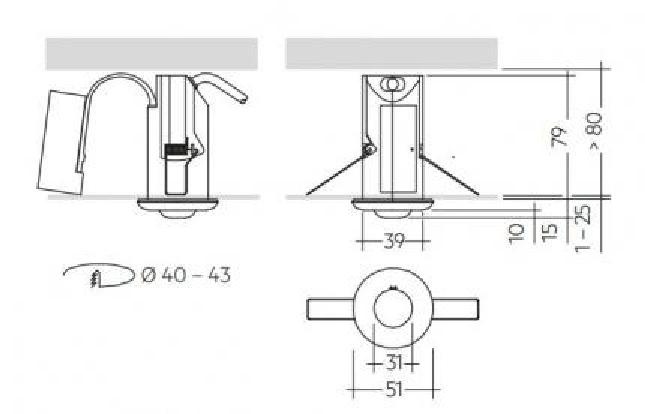

Small size ceiling hole, 40 – 43 mm diameter, 80 mm height
Downloads & Documents
ENEC-Zertifkat-Tridonic-LED-Notleuchte-EM-R2A-ST-NM-132-2W-89800540_1592175579_3
Montageanleitung-Tridonic-LED-Notleuchte-EM-R2A-ST-NM-132-2W-89800540_1592175579_4
Datenblatt-Tridonic-LED-Notleuchte-EM-R2A-ST-NM-132-2W-89800540_1592175579_5
Declaration-of-conformity-Tridonic-LED-emergency-light-EM-R2A-ST-NM-132-2W-89800540_1592175579_7
ENEC-Certificate-Tridonic-LED-emergency-light-EM-R2A-ST-NM-132-2W-89800540_1592175579_8
Mounting-Instructions-Tridonic-LED-emergency-light-EM-R2A-ST-NM-132-2W-89800540_1592175579_9
Konformitaetserklaerung-Tridonic-LED-Notleuchte-EM-R2A-ST-NM-132-2W-89800540_1592175579_10
Electrical data
| rated voltage: | 220-240 V |
|---|---|
| lifetime: | 50000 h |
Casing
| protection type: | IP20 |
|---|---|
| mounting: | Installation |
| protection class: | II |
| environment temperature from: | 5 °C |
| environment temperature to: | 30 °C |
Photometric data
| sensor: | no |
|---|---|
| color code: | 865 |
| color: | white |
| color temperature [Kelvin]: | 6500 |
| color rendering index [CRI]: | >80 |
Logistic data
| item category: | LED emergency luminaires |
|---|
Dimensions & packaging
| EAN | 9006210632421 |
|---|---|
| Length | 79 mm |
