Tridonic LED-Driver LCU 48V 75W DC-STR DIM SR - 28001233

Product number: 28001233
Tridonic GmbH & Co KG

Tridonic LED-Driver LCU 48V 75W DC-STR DIM SR - 28001233

Product number: 28001233

Immediately available (9 articles directly deliverable)

That's why you should buy this product now
  • Excellent reviews on Trustpilot
  • 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
  • Short delivery times for stock items
  • Very good price-performance ratio
  • Highest possible quality standards
  • Products from renowned manufacturers


Content: 1 Stück

Product information "Tridonic LED-Driver LCU 48V 75W DC-STR DIM SR - 28001233"

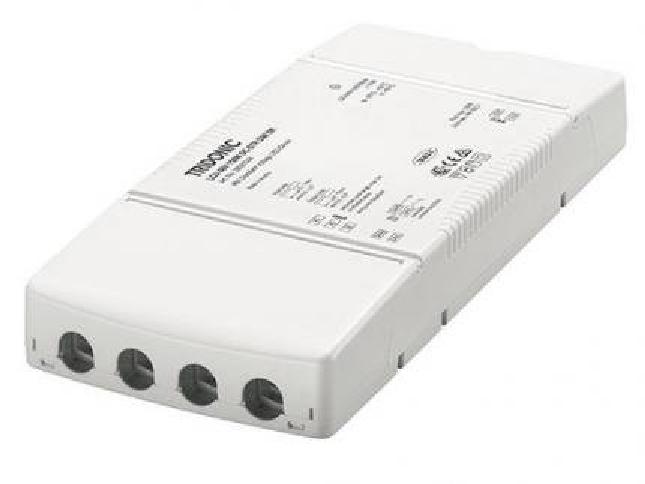

The emergency-current capable, dimmable DC-String constant voltage LED driver LCU 48V 75W DC-STR DIM SR from TRIDONIC is suitable for installation in luminaires of protection class I and II as well as for independent mounting. It is compatible with other DC-String components and has an integrated DALI to DC Powerline communication bridge (PLC).

The rated power of the LED ECG is up to 75 watts. It has an efficiency of up to 91 %. It can be dimmed in various ways via the integrated one4all interface: corridorFUNCTION, switchDIM, DALI, DSI.

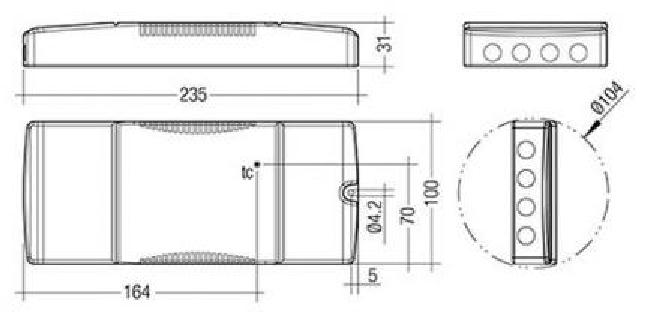

The white polycarbonate housing is IP20 protected and measures 235 x 100 x 31 mm.

The TRIDONIC LED driver has a temperature protection according to EN 61347-2-13 C5e and an Intelligent Temperature Guard (overtemperature protection). It is also protected against short circuits and overload.

The nominal life is up to 50,000 hours. TRIDONIC offers a 5 year warranty on the LED ECG.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
output voltage: 48
operating mode: constant voltage
rated voltage: 220-240 V
lifetime: 50000 h
max housing temperature (tc-max): 70 °C
protection type: IP20
mounting: Installation
environment temperature from: -25 °C
environment temperature to: 55 °C
Photometric data
color: white
interface: DALI
Logistic data
item category: LED drivers
Dimensions & packaging
EAN 9006210561813
Length 235 mm
Width 100 mm
Height 31 mm
Weight 350 g
