Product information "Tridonic LED-Driver LCU 48V 150W DC-STR DIM lp - 28001235"

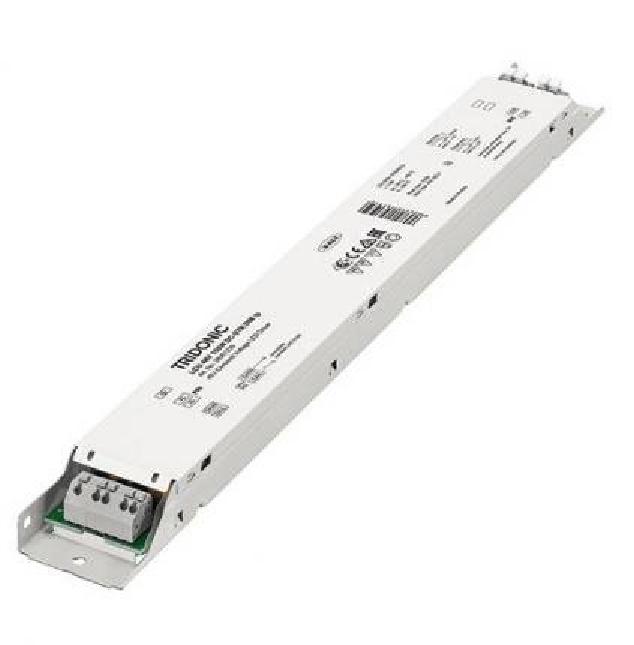

The emergency-current capable, dimmable DC-String constant voltage LED driver LCU 48V 150W DC-STR DIM lp from TRIDONIC is suitable for installation in luminaires of protection class I and II. It is compatible with other DC-String components and has an integrated DALI to DC Powerline communication bridge (PLC).

The rated power of the LED ECG is up to 150 watts. It has an efficiency of up to 92.5%. It can be dimmed in various ways via the integrated one4all interface: corridorFUNCTION, switchDIM, DALI, DSI.

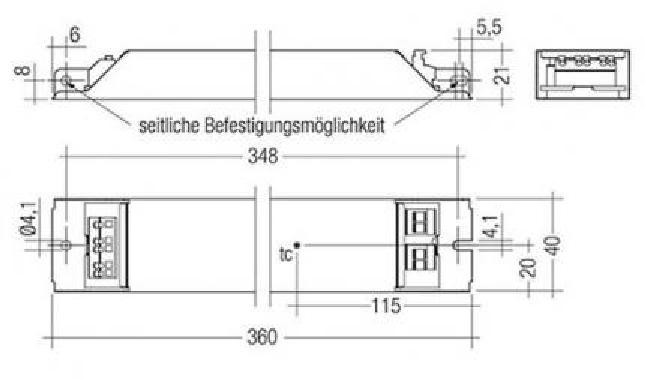

The "Low Profile" metal case with white cover is IP20 protected and measures 360 x 40 x 21 mm.

The TRIDONIC LED driver has a temperature protection according to EN 61347-2-13 C5e and an Intelligent Temperature Guard (overtemperature protection). It is also protected against short circuits and overload.

The nominal life is up to 50,000 hours. TRIDONIC offers a 5 year warranty on the LED ECG.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
number of channels: 1
output voltage: 59 V
rated voltage: 220-240 V
terminal type: Push-in CAGE CLAMP®
lifetime: 50000 h
system power: 150 W
form type: linear
max housing temperature (tc-max): 80 °C
protection type: IP20
mounting: Installation
environment temperature from: -25 °C
environment temperature to: 50 °C
Photometric data
dimmable: yes
color: white
interface: corridor function
Logistic data
item category: LED drivers
Dimensions & packaging
EAN 9006210561950
Length 360 mm
Width 40 mm
Height 21 mm
