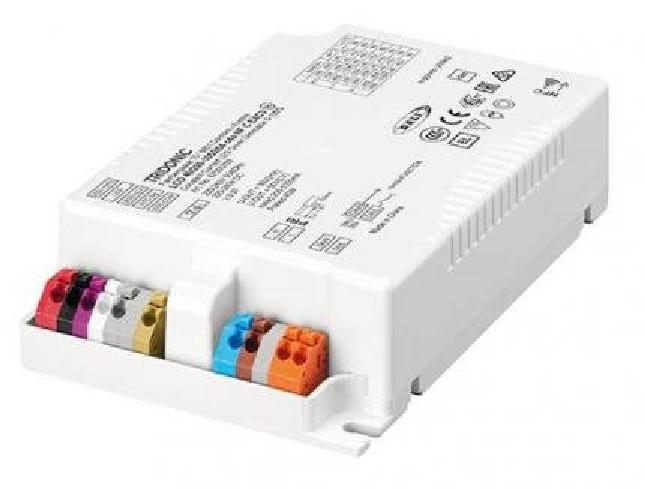

Tridonic LED-Driver LCO 40/200-1050/64 o4a NF C EXC3 - 87500709

Tridonic GmbH & Co KG

Tridonic LED-Driver LCO 40/200-1050/64 o4a NF C EXC3 - 87500709

Product number: 87500709

Immediately available

€47.84


Content: 1 Stück

Prices incl. VAT plus shipping costs net €40.20

Product information "Tridonic LED-Driver LCO 40/200-1050/64 o4a NF C EXC3 - 87500709"

40 W LED ECG with NFC interface

The dimmable constant current LED driver LCO 40/200-1050/64 o4a NF C EXC3 from the EXCITE Outdoor series from TRIDONIC is suitable for installation in luminaires of protection class I and II. It is also suitable for emergency lighting systems according to EN50172. Ideal application areas include roads, streets and the industry.

Adjustable output current

The LED driver has a nominal output of up to 40 watts. By means of near field communication (NFC), DALI or the ready2mains programmer, the output current can be adjusted between 200 and 1050 mA.

The LED ECG has several interfaces : a NFC interface, a one4all dimming interface, a ready2mains interface for configuration via the mains and a U6Me2 interface. In addition, 45° push terminals are supplied.

Power input on standby is less than 0.16 watts. The LED ECG has an efficiency of up to 91%. Time and levels (chronoSTEP) can be programmed via NFC, DALI, U6Me2 and ready2mains. After installation with NFC interface and ready2mains, in-field programming is also possible.

Dimmable via DALI, switchDIM and DSI

Using the one4all interface, the LED ECG can be dimmed in a range of 5-100% via DALI DT6, switchDIM, corridorFUNCTION and DSI. In addition, dimming via the mains voltage is possible (inputDIM).

The LED driver has an advanced Constant Light Output function (eCLO). The application-oriented operating window ensures maximum compatibility. In addition, the EXCITE Outdoor LED ECG has an Intelligent Temperature Guard (ITG), a configurable external temperature management (ETM) and an Intelligent Voltage Guard Plus (IVG +).

The TRIDONIC LED driver has a temperature protection according to EN 61347-2-13 C5e. It is also protected against short circuit, overload and open circuit, has protection at the input voltage range, a high overvoltage protection up to 10 kV (3 pulses) asymmetrical (protection class I and II) and a reduced surge amplification. The nominal life is up to 100,000 h. TRIDONIC offers an 8-year warranty on the LED ECG.

Electrical data
output current: 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050
operating mode: constant current
rated voltage: 220-240 V
lifetime: 100000 h
Casing
max housing temperature (tc-max): 90 °C
protection type: IP20
mounting: Installation
environment temperature from: -40 °C
environment temperature to: 70 °C
Photometric data
color: white
interface: ready2mains
Logistic data
item category: LED drivers

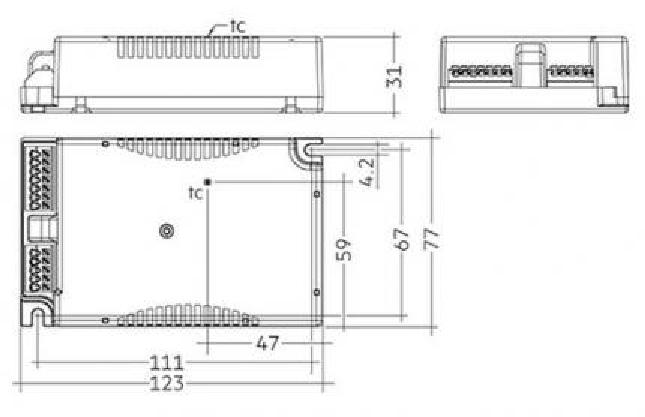

Dimensions & packaging
EAN 9006210663104
Length 123 mm
Width 77 mm
Height 31 mm
Weight 210 g

TRIDONIC
Tridonic Deutschland GmbH
Edisonalle 1
89231 Neu-Ulm DE

BestellungDE@tridonic.com

www.tridonic.com/en/int
