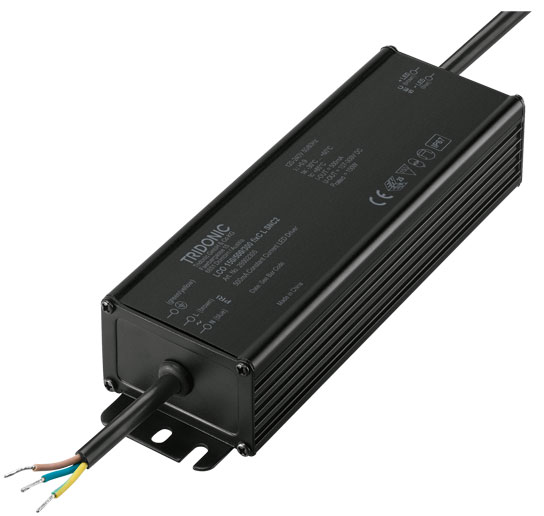

Tridonic LED-Driver LCO 150W 500/700/1050/1400mA fixC L SNC2 - 28002308
Tridonic GmbH & Co KG
Tridonic LED-Driver LCO 150W 500/700/1050/1400mA fixC L SNC2 - 28002308
Product number:
28002308
No longer available
For an alternative please contact us!
Product information "Tridonic LED-Driver LCO 150W 500/700/1050/1400mA fixC L SNC2 - 28002308"
Product description
- Independent fixed output LED driver
- Constant current LED driver
- Output current 1,400 mA
- Up to 92 % efficiency
- Ambient temperature range of -40 ... +60 °C
- Max. casing temperature tc of 90 °C
- The delivery time is 13 weeks.
- Nominal lifetime up to 80,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: metal, black
- Type of protection IP67
Interfaces
- Connection: cable 300 mm
Functions
- Protective features (overtemperature, short-circuit, overload, no-load)
Benefits
- Wide voltage input 100 – 240 V
- Best energy savings due to low stand-by losses and high efficiency
- Suitable for mains voltage peaks (burst/surge) up to 6 kV
- Double or reinforced insulation
- High number of drivers on 16 A (B) automatic circuit breakers
- Extended vibration damping
- The LED driver is designed for a lifetime stated above under reference conditions and with a failure probability of less than 10 %
- The wide product range offers common currents for a cost effective luminaire manufacturing
Typical applications
- For parking lot, high bay and street applications
- For linear/area lighting in industry applications
EAN/UPC: 9006210680743
Country of Origin: CN
Customs tariff No.: 85044083
Downloads & Documents
Electrical data
| output current: | 1400 |
|---|---|
| operating mode: | constant current |

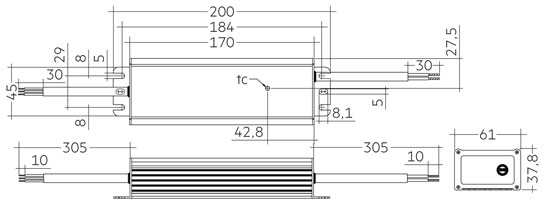

Dimensions & packaging
