Tridonic LED-Driver LCI 105W 250-1050mA 300V flexC NF lp EXC3 (INDUSTRY) - 87500920
Tridonic GmbH & Co KG
Tridonic LED-Driver LCI 105W 250-1050mA 300V flexC NF lp EXC3 (INDUSTRY) - 87500920
Product number:
87500920
Shipping in 5 day(s)
€43.22
net €36.32
Product information "Tridonic LED-Driver LCI 105W 250-1050mA 300V flexC NF lp EXC3 (INDUSTRY) - 87500920"
Product description
- Constant current built-in LED driver, particularly suitable for industrial applications in tough environments with elevated ambient temperatures such as cold warehouses or factories
- Output current adjustable between 250 – 1,050 mA
- Max. output power 105 W
- Suitable for mains voltage peaks (burst/surge) up to 4 kV
- Expanded temperature range of -40 ... +80 °C
- Nominal lifetime up to 120,000 h (at ta 60 °C)
- 8 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- White slim metal casing
- Type of protection IP20
Interfaces
- Near field communication (NFC)
- Terminal blocks: 45° push terminals
Functions
- Adjustable output current in 1-mA-steps (I-SELECT 2 resistor or NFC)
- Intelligent Temperature Guard (overtemperature protection)
- Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
- Protective features (overtemperature, short-circuit, overload, no-load, input voltage range)
- Suitable for emergency escape lighting systems acc. to EN 50172
Benefits
- Flexible configuration via companionSUITE (NFC) or I-SELECT 2
- Application-oriented operating window for maximum compatibility
- Extended vibration damping
- Increased safety through robust design and advanced testing under extreme test conditions
- High reliability through the selection of exclusive components
Typical applications
- For linear/area lighting in industry applications
EAN/UPC: 9006210723723
Country of Origin: CN
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050 |
|---|---|
| operating mode: | constant current |

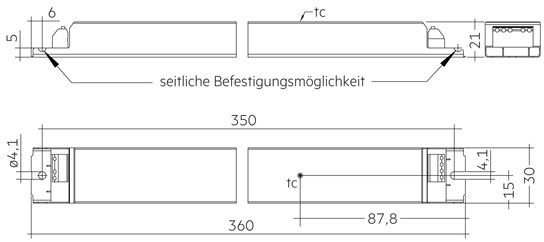

Dimensions & packaging
