Product information "Tridonic LED-Driver LCA 44W 700-1050mA flexC PH-C SR ADV - 87500605"

The dimmable constant current LED driver LCA 44W 700-1050mA flexC PH-C SR ADV from the ADVANCED series by TRIDONIC can be used both as an independent LED driver and for luminaire installation. It is suitable for luminaires of protection class I and II with M and MM according to EN 60598, VDE 0710 and VDE 0711.

The output current is selectable between 700 and 1.050 mA. The maximum output power is 44 watts. The LED ECG has an efficiency of up to 87%.

The LED driver can be dimmed by means of phase and phase dimming dimmers in a dimming range of 5 - 100% (depending on the dimmer).

The housing is made of white polycarbonate and IP20 protected. There are 0° screw terminals.

The electronic ballast for LED modules is equipped with a temperature protection as per 61347-2-13 C5e, an overload protection, a short circuit protection and a no load protection. In addition, it is protected against burst voltages 1kV, against surge voltages (L to N) and surge voltages 2 kV (L/N to earth).

The nominal lifetime is up to 50,000 hours. TRIDONIC offers a 5 year warranty on the LED ECG.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
output current: 700, 1050
operating mode: constant current
rated voltage: 220-240 V
lifetime: 50000 h
Casing
max housing temperature (tc-max): 80 °C
protection type: IP20
mounting: with strain relief
environment temperature from: -20 °C
environment temperature to: 50 °C
Photometric data
color: white
interface: phase cut and gating
Logistic data
item category: LED drivers

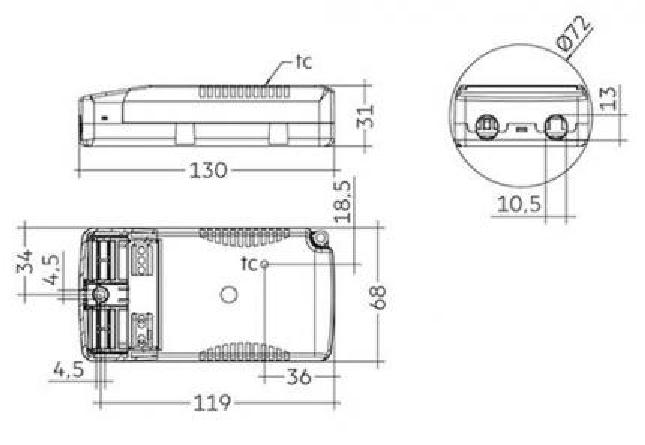

Dimensions & packaging
EAN 9006210636481
Length 130 mm
Width 68 mm
Height 31 mm
