Tridonic LED-Driver LCA 38W 350-1050mA DT8 C PRE - 28002199

Product number: 28002199

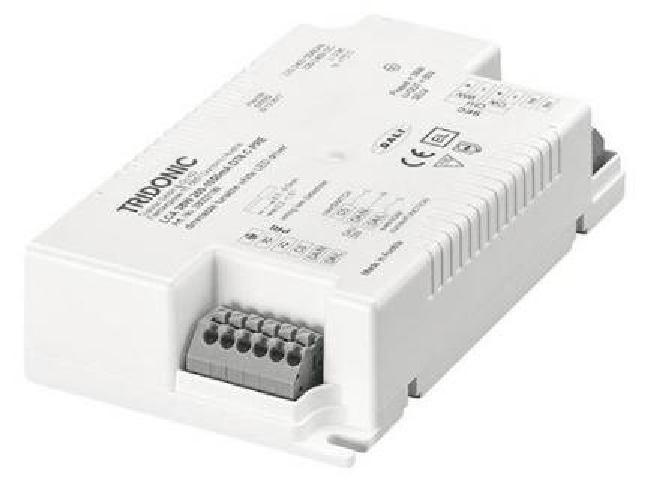

Tridonic LED-Driver LCA 38W 350-1050mA DT8 C PRE - 28002199
Tridonic LED-Driver LCA 38W 350-1050mA DT8 C PRE - 28002199
Tridonic LED-Driver LCA 38W 350-1050mA DT8 C PRE - 28002199
Tridonic LED-Driver LCA 38W 350-1050mA DT8 C PRE - 28002199
Tridonic GmbH & Co KG

Tridonic LED-Driver LCA 38W 350-1050mA DT8 C PRE - 28002199

Product number: 28002199

Immediately available

That's why you should buy this product now
  • High Quality at a low price
  • 4.8 out of 5 ⭐⭐⭐⭐⭐ on Google
  • Short delivery times for stock items

€80.27


Content: 1 Stück

Prices incl. VAT plus shipping costs net €67.45

Product information "Tridonic LED-Driver LCA 38W 350-1050mA DT8 C PRE - 28002199"

DALI DT8 Tunable White constant current driver

The dimmable 2-channel DALI DT8 Tunable White constant current LED driver LCA 38W 350-1050mA DT8 SR PRE from the Tridonic range is suitable for installation in luminaires of protection class I and II. It has a nominal power of 38 watts. With the tunable white system you can adjust the color temperature at a constant luminous flux between 2,700 and 6,500 K. Ideal application areas include downlights in commercial and catering applications.

Dimmable; adjustable output current

The LED ECG has a one4all interface (DALI DT8, DSI, switchDIM, corridorFUNCTION V2), a colorSWITCH interface and 45 ° plug-in terminals for easy wiring. The output current can be set between 350 and 1050 mA. colorSWITCH allows you to choose between predefined color values. The LED driver can be configured via DALI. Both switchDIM and colorSWITCH have a memory function. In addition, the LED ECG has a constant light output function (CLO), power-up fading and fade-to zero.

The Tridonic Tunable White LED driver provides protection against overtemperature, short circuit, overload and no load as well as reduced surge amplification. It is also suitable for emergency lighting systems according to EN50172. It has a long life of 50,000 hours and 5 years system warranty.


0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Electrical data
output current: 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050
operating mode: constant current
rated voltage: 220-240 V
terminal type: Push-in CAGE CLAMP®
lifetime: 100000 h
Casing
form type: linear
max housing temperature (tc-max): 80 °C
protection type: IP20
mounting: Installation
environment temperature from: -25 °C
environment temperature to: 65 °C
Photometric data
color: white
interface: corridor function
Logistic data
item category: LED drivers

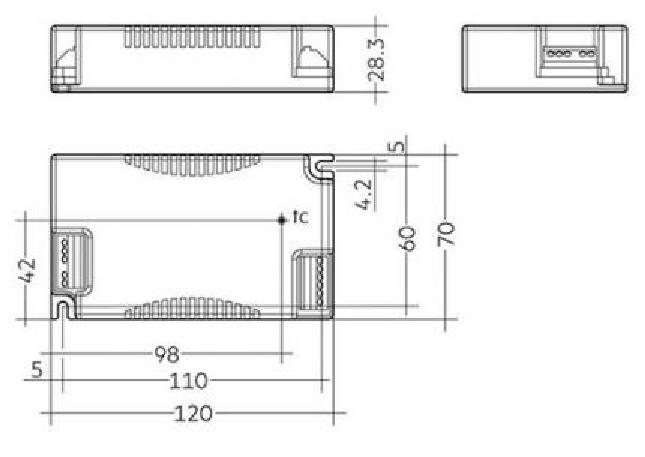

Dimensions & packaging
EAN 9006210643915
Length 120 mm
Width 70 mm
Height 28 mm
Weight 168 g
