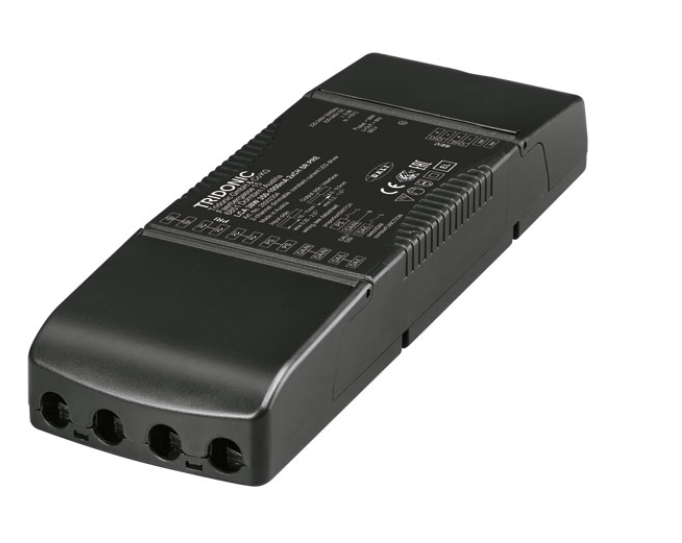

Tridonic LED-Driver LCA 38W 350–1050mA 2xCH SR PRE - 28002204
Tridonic GmbH & Co KG
Tridonic LED-Driver LCA 38W 350–1050mA 2xCH SR PRE - 28002204
Product number:
28002204
Immediately available
€75.40
Prices incl. VAT plus shipping costs net €63.36
Product information "Tridonic LED-Driver LCA 38W 350–1050mA 2xCH SR PRE - 28002204"
NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
Independent dimmable constant current 2-channel LED driver with DALI DT6 with strain-relief
Dimming range 1 to 100 %
Suitable for luminaires of protection class I and protection class II (see data sheet chapter 3.4 for details)
Adjustable output current between 350 and 1,050 mA for each channel via I-SELECT 2 plugs or DALI
Max. output power 38 W
Up to 89 % efficiency
Power input on stand-by < 0.25 W
Nominal lifetime up to 100,000 h
Downloads & Documents
Electrical data
| output current: | 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050 |
|---|---|
| operating mode: | constant current |
Dimensions & packaging
