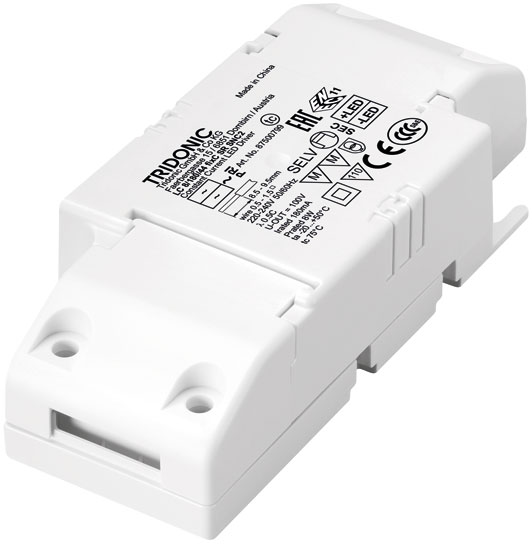

Tridonic LED-Driver LC 8W 180/200mA fixC SR SNC2 - 87500800
Tridonic GmbH & Co KG
Tridonic LED-Driver LC 8W 180/200mA fixC SR SNC2 - 87500800
Product number:
87500800
Shipping in 5 day(s)
€8.12
Prices incl. VAT plus shipping costs net €6.82
Product information "Tridonic LED-Driver LC 8W 180/200mA fixC SR SNC2 - 87500800"
Product description
- Independent LED driver with cable clamps
- Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
- For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
- Temperature protection as per EN 61347-2-13 C5e
- Output current 200 mA
- Max. output power 8 W
- Nominal lifetime up to 50,000 h
- 5 years guarantee (conditions at https://www.tridonic.com/manufacturer-guarantee-conditions)
Housing properties
- Casing: polycarbonate, white
- Type of protection IP20
- Push-in terminals
- 2 separate strain relief parts for input and output cables with highly robust clamps
Functions
- Overload protection
- Short-circuit protection
- No-load protection
- No output current overshoot at mains on/off
- Burst protection voltage 1 kV
- Surge protection voltage 0.5 kV (L to N)
- Surge protection voltage 1 kV (L/N to earth)
Typical applications
- For spot light and downlight in retail and hospitality applications
- For panel light and area light in office and education application
EAN/UPC: 9006210683676
Country of Origin: CN
Customs tariff No.: 85044095
Downloads & Documents
Electrical data
| output current: | 200 |
|---|---|
| operating mode: | constant current |
Dimensions & packaging
