Tridonic LED-Driver LC 75W 350-1050mA flexC lp EXC - 28000683

Tridonic GmbH & Co KG

Tridonic LED-Driver LC 75W 350-1050mA flexC lp EXC - 28000683

Product number: 28000683

Shipping in 5 day(s)

€36.50


Content: 1 Stück

Prices incl. VAT plus shipping costs net €30.67

Product information "Tridonic LED-Driver LC 75W 350-1050mA flexC lp EXC - 28000683"

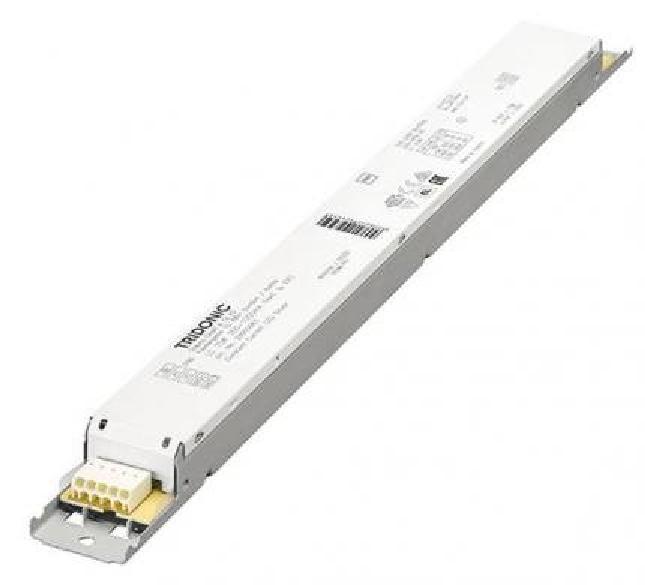

The LC 75W 350-1050mA flexC lp EXC from the EXCITE series by TRIDONIC is a dimmable constant current LED driver with IP20 protection for Installation in luminaires of protection class I and II.

The output current can be set between 350mA and 1050mA in 1mA steps via the ready2mains programmer or I-select 2 plugs in 1mA steps. The maximum output power is 75 W. Thanks to the achieved efficiency of up to 92% and the dimming function, you benefit from high energy savings.

The LED ECG is equipped with IP20 protection. It has a "low profile" metal case with a white cover.

The LED driver can be dimmed by means of the ready2mains gateway in a dimming range of 10-100% (load-dependent). In addition, flexible configuration is possible via the ready2mains Interface. 0 ° push terminals are available as well.

The LED driver is protected against overtemperature, short circuit, overload and no load as well as at input voltage range. The life span is up to 100,000 hours. TRIDONIC offers a 5-year guarantee on the electronic ballast.

An application area is linear and area lighting in office applications. The LED ECG is also suitable for emergency lighting systems according to EN 50172.

Electrical data
output current: 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 950, 1000, 1050
operating mode: constant current
rated voltage: 220-240 V
lifetime: 100000 h
Casing
max housing temperature (tc-max): 90 °C
protection type: IP20
mounting: Installation
environment temperature from: -25 °C
environment temperature to: 65 °C
Photometric data
color: white
interface: ready2mains
Logistic data
item category: LED drivers

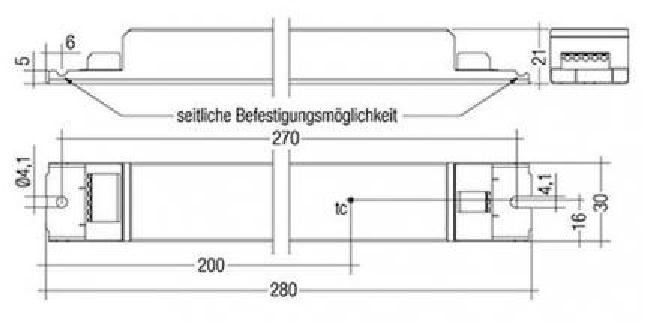

Dimensions & packaging
EAN 9006210524559
Length 280 mm
Width 30 mm
Height 21 mm
Weight 190 g
